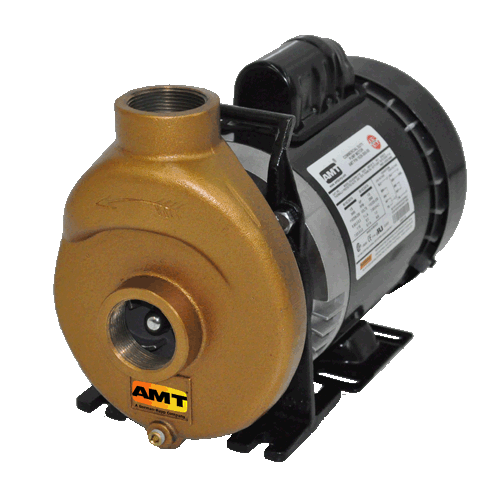

AMT Pumps 388F-97, 1-1/2" Bronze Inline Centrifugal Pump (1/2 HP, 115/230V, 1 Phase, 1-1/2" Suction, 1-1/2" Discharge, TEFC)
| Applications |
| AMT Bronze Inline Centrifugal pumps are designed for use with most gravity fed service applications requiring liquid transfer. All models are fitted with a self-cleaning stainless steel impeller for maximum 1/8" diameter solids handling. Units feature pull-from-rear design for easy servicing without removing piping. |
| |
| Features |
| Bronze Construction |
|
| Buna-N Mechanical Seal and O-Ring |
|
| 1-1/2" x 1-1/2" NPT Thread |
|
| Maximum Temperature 180 F |
|
| Self-cleaning Stainless Steel Impeller |
|
| 1/2 to 2 HP Totally Enclosed Fan Cooled (TEFC) Single Phase Motors |
|
| Pull-from-Rear Design for Easy Servicing Without Removing Piping |
|
| Maximum 1/8" Diameter Solids Handling |
|
| Pumps are not self-priming and require flooded suction. |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
388F-97
|
|
Type
|
Centrifugal Pumps
|
|
Series
|
1-1/2" Bronze Inline Centrifugal Pumps
|
|
Curve
|
A
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Enclosure
|
TEFC
|
|
Voltage @ 60 Hz
|
115/230
|
|
Full Load Amps
|
8/4
|
|
Suction
|
1-1/2" NPT
|
|
Discharge
|
1-1/2" NPT
|
|
Length
|
13.0"
|
|
Width
|
8.9"
|
|
Height
|
8.7"
|
|
Max Working Pressure
|
75 PSI
|
|
Max Temperature
|
180° F
|
|
Max Solids Handling
|
1/8" Diameter
|
|
GPM @ 40 ft. of Total Head
|
18
|
|
GPM @ 30 ft. of Total Head
|
30
|
|
GPM @ 20 ft. of Total Head
|
40
|
|
GPM @ 10 ft. of Total Head
|
45
|
|
Ship Wt. (Lbs.)
|
41
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
388F-97
Manufacturer:
AMT
Manufacturer Part No:
388F-999-97
|
|
|
