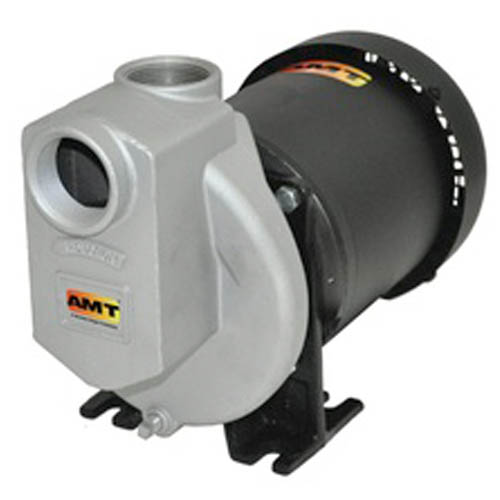

AMT Pumps 3891-98, 1-1/2" SS Self-Priming Chemical Pump (1-1/2 HP, 115/230V, TEFC, 1 Phase, Viton Seal)
| Applications |
| AMT Self-Priming 300 Series Stainless Steel or Bronze Centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with Totally Enclosed Fan Cooled (TEFC) motors. 300 Series Stainless Steel models are fitted with Teflon? mechanical seal and o-ring, while bronze models come standard with Viton? mechanical seal and o-ring. Pumps are selfpriming to 6 feet. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU. |
| |
| Features |
| Bronze or Stainless Steel Construction with Stainless Steel Impeller |
|
| Viton? or Teflon? Mechanical Seal and O-ring - Depending on Model |
|
| 1-1/2" NPT Suction and Discharge Ports |
|
| Maximum Temperature:Bronze: 200 F, Stainless Steel: 250 F |
|
| Self-priming to 6 Ft. |
|
| Maximum Working Pressure 75 PSI |
|
| Self-cleaning, Semi-open Impeller |
|
| Pedestal Models Feature Epoxy Coated Bearing Housing with 3/4" Diameter Stainless Steel Shaft with 3/16" Keyway and Sealed Ball Bearings |
|
| 3/4 to 2 HP Totally Enclosed Fan Cooled (TEFC) Single or Three Phase Motors |
|
| Designed to handle liquids of specific gravities up to 1.3 |
|
| QSP - Quick Ship Pump for Many Models |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
3891-98
|
|
Type
|
Chemical Pumps
|
|
Series
|
1-1/2" Self-Priming Chemical Pumps
|
|
HP
|
1-1/2
|
|
TYPE
|
TEFC
|
|
FRAME
|
56J
|
|
VAC/60 Hz
|
115/230
|
|
PHASE
|
1
|
|
CASING
|
Stn. Steel
|
|
SHAFT SEAL
|
Viton/SS
|
|
SHIP WT (Lbs.)
|
53
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
3891-98
Manufacturer:
AMT
Manufacturer Part No:
3891-999-98
|
|
|
