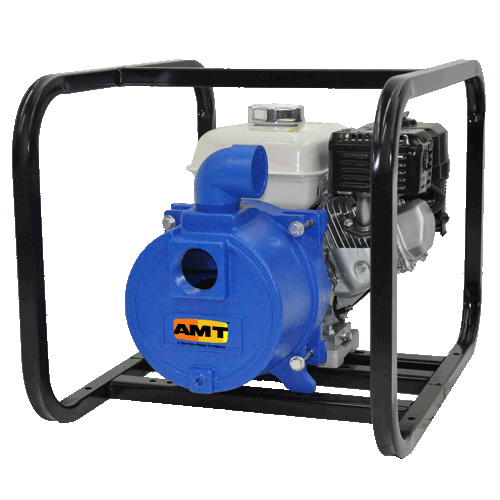

AMT Pumps 3937-D5, 2" Engine Driven Trash Pump (5 HP, Hazt Diesel 1B30, 2 " NPT Port, 2.7 Hr Run Time, .82 Gal Tank Size, 1" Dia Max Solids)
| Applications |
| AMT Cast Iron Engine Driven Trash pumps are designed for applications which require high flow efficiency, solids handling capability and abrasion resistance. This series of pumps are also good for chemical spraying, handling and processing. These pumps are constructed of heavy duty CNC machined cast iron components featuring removable/replaceable cast iron volute and impeller. Simple four bolt clean out design permits easy removal of trash and debris without disconnecting hoses. Pumps are available with gasoline overhead valve or diesel engines from various engine manufacturers. |
| |
| Features |
| (2) NPT Pipe Nipples & 2" Street Elbow Included |
| Viton/Silicon Carbide Mechanical Seal |
| Viton O-ring and Casing Seal |
| Self-primes to 20 Feet with Built-in Viton Check Valve |
| Stainless Steel Shaft Sleeve |
| Steel Suction Strainer Included |
| Cast Iron Replaceable Volute/Wearplate and Impeller |
| Maximum Temperature 180 F |
| Maximum Working Pressure 75 PSI |
| Heavy Duty Steel Roll Frame Included |
| B & S Vanguard and Honda Engines are Overhead Valve (OHV) Designs with Low Oil Alert |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
3937-D5
|
|
Type
|
Trash Pumps
|
|
Series
|
2" Engine Driven Trash Pumps
|
|
Curve
|
B
|
|
Port
|
2" NPT
|
|
Driver
|
Hatz Diesel 1B30
|
|
Seal
|
Viton / SIC
|
|
Run Time (Hours)
|
2.7
|
|
Tank Size (Gal/Ltr.)
|
.82 / 3.1
|
|
Ship Wt. (Lbs.)
|
140
|
|
HP Class
|
5 HP
|
|
Oil Alert
|
Included
|
|
Max Solids
|
1" Diameter
|
|
Suction
|
2" NPT
|
|
Discharge
|
2" NPT
|
|
L
|
31"
|
|
W
|
22.5"
|
|
H
|
23.6"
|
|
Optional Wheel kit
|
C402-90
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
3937-D5
Manufacturer:
AMT
Manufacturer Part No:
3937-999-D5
