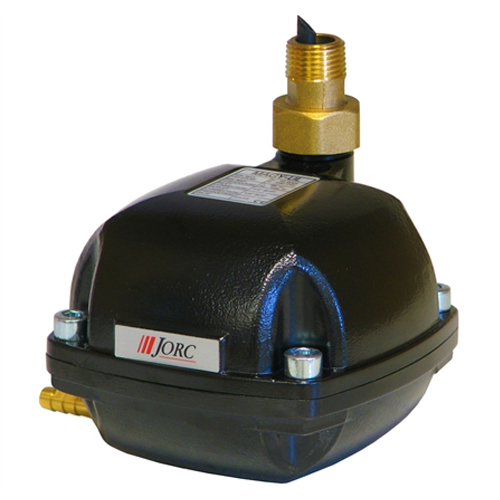

3952 JORC MINI-MAG Level Sensing Drain (1/2" NPT Inlet, 0-230 PSI Pressure)
| Applications |
| The MINI-MAG is a magnetically operated zero air loss drain that discharges condensate from all types of compressed air filters and refrigerated dryers by using a unique technology based on magnetic forces. The MINI-MAG uses specially selected magnets that operate the 2/2 way direct acting valve construction. |
| |
| Features |
| Magnetically operated zero air loss drains which requires no control air or power source. |
|
| MINI-MAG includes anti-airlock adapter. |
|
| 1/8" outlet with hose pipe connector |
|
| Serviceable valve |
|
| 2/2 way direct acting valve assembly |
|
| Light weight, space saving design |
|
| Aluminum housing resists corrosion |
|
| Integrated air lock prevention |
|
| 360 degree rotating outlet for easier installation |
|
|
Specifications
|
|
Brand
|
JORC
|
|
Catalog Number
|
3952
|
|
Type
|
Jorc MINI-MAG drain for filters
|
|
Series
|
Magnetically operated drains
|
|
Part Number
|
3952
|
|
Inlet
|
1/2" NPT
|
|
Pressure
|
0-230 PSI
|
|
Dimensions
|
5.394" H x 5.687" W x 4.718" D
|
|
Max Filter Capacity
|
Unlimited
|
|
Max Drainage Capacity
|
37.8 gallons per hour
|
|
Valve Seals
|
FPM
|
|
Inlet Height
|
3.9"
|
|
Discharge Opening Diameter
|
2mm
|
|
Ambient Temperature
|
34 F to 122 F
|
|
Environmental Protection
|
NEMA 6 (IP 68)
|
|
Housing Material
|
Aluminum with ElectroPhoretic (EP) coating
|
Item Number:
3952
Manufacturer:
Jorc
Manufacturer Part No:
3952
|
|
|
