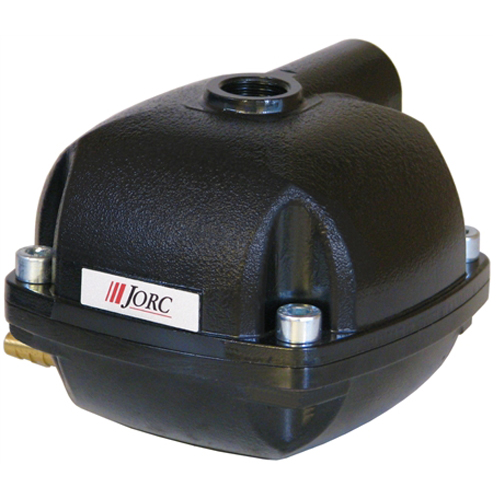

3954 JORC MAG-11 Level Sensing Drain (0 - 230 psi Pressure, 4.055" H x 5.687" W x 4.798" D Dimensions)
| Applications |
| The Jorc 3954 MAG-11 level sensing drain is magnetically operated. It has no air loss, and does not need a power source to operate. The magnetic actuator opens and closes a cylinder valve to remove condensate from the system. Ideal for refrigerated dryers, liquid separators, coolers, and piston compressors. Works with any size compressed air filter. |
| |
| Features |
| Magnetically operated zero air loss drains which requires no control air or power source |
|
| Dual 1/2" NPT inlet (top & side) |
|
| 1/8" outlet with hose pipe connector |
|
| Rated for 0-230 PSI (0-16 bar) |
|
| Space saving design |
|
| Serviceable valve |
|
| 2/2 way direct acting valve |
|
| Aluminum housing resists corrosion |
|
| Integrated air lock prevention |
|
| 360 degree rotating outlet for easier installation |
|
|
Specifications
|
|
Brand
|
JORC
|
|
Catalog Number
|
3954
|
|
Type
|
Jorc magnetically operated drains
|
|
Series
|
MAG-11
|
|
Inlet
|
1/2" NPT
|
|
Pressure
|
0 - 230 psi
|
|
Dimensions
|
4.055" H x 5.687" W x 4.798" D
|
|
Max Filter Capacity
|
Unlimited
|
|
Max Drainage Capacity
|
37.8 gallons per hour
|
|
Valve Seals
|
FPM
|
|
Valve Opening
|
2mm
|
|
Inlet Height
|
4" (top), 3.5" (side)
|
|
Ambient Temperature
|
34 F to 122 F
|
|
Housing Material
|
Aluminum with ElectroPhoretic (EP) coating
|
Item Number:
3954
Manufacturer:
Jorc
Manufacturer Part No:
3954
|
|
|
