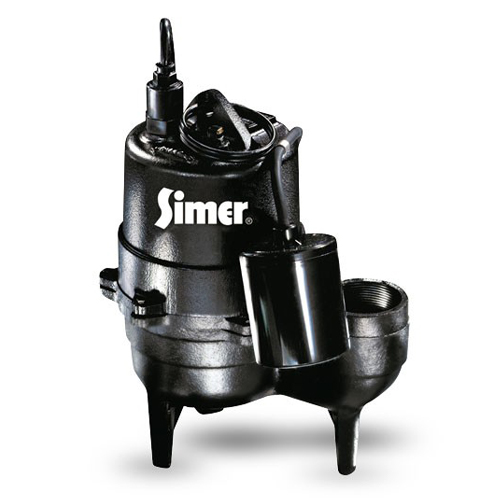

3963 Simer Sumbersible Cast Iron Sewage Pump (1/2 HP, Tethered Switch, 2" NPT Discharge Pipe, 9000 Max GPH, 10' Cord, 115V)
| Applications |
| Rugged, sewage and pump capable of handling solids up to 2". Cast iron design for a variety of wastewater applications. |
| |
| Features |
| Strong cast iron construction |
|
| Includes tethered float switch |
|
| Very high capacity |
|
| Capable of handling 2" solids ideal for basement installation, pumping below-grade toilets, laundry facilities and general dewatering |
|
| Rugged cast-iron construction maximizes pump life |
|
| Heavy-duty motor with overload protection provides safe operation |
|
| Maximum pumping capacity to 9000 gallons per hour |
|
| Includes 10' power cord |
|
| 2" NPT cast iron discharge |
|
| Easy installation, requires minimum 18" diameter sewage basin |
|
|
Specifications
|
|
Brand
|
Simer
|
|
Catalog Number
|
3963
|
|
Type
|
Automatic Cast Iron Submersible Sewage Pump
|
|
Series
|
Sewage Pumps
|
|
Model Number
|
3963
|
|
HP
|
1/2
|
|
Warranty
|
3-Year
|
|
Switch Type
|
Tethered
|
|
Min. Sump Diameter
|
18"
|
|
Max Lift
|
18'
|
|
Approx Weight
|
35.85 lbs
|
|
Carton (L x W x H)
|
10.563" x 9.188" x 17.063"
|
|
Construction
|
Cast Iron
|
|
Max Capacity
|
9000 GPH
|
|
Flow at 10' Lift
|
5400 GPH
|
|
Switch ON Level
|
16"
|
|
Switch OFF Level
|
7"
|
|
Minimum Sump Diameter
|
18"
|
|
Minimum Sump Depth
|
30"
|
|
Discharge Pipe Size
|
2" NPT
|
|
Max Solids Handling Size
|
2" Spherical
|
|
AMP Draw
|
13 AMPS
|
|
Cord Length
|
10'
|
|
Voltage
|
115V AC, 60 HZ
|
|
Max Liquid Temp
|
130F
|
|
Additional Specs
|
See Support Documents
|
Item Number:
3963
Manufacturer:
Simer
Manufacturer Part No:
3963
|
|
|
