3963C Simer Pre-Plumbed Sewage System (Sewage Pump with Basin, 1/2 HP, Tethered Switch, 2" NPT Discharge, 10' Cord, 2" Max Solids, 115V AC)
| Applications |

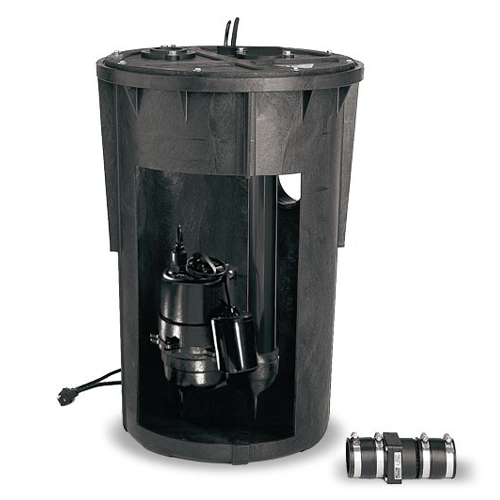

| Pre-plumbed system includes a powerful 1/2 HP cast iron sewage pump inside of a basin with sealable lid to provide a simple-to-install system. Perfect for basement bathrooms, laundry, etc. |
| |
| Features |
| All-in-one simplicity |
|
| Easy-to-plumb |
|
| Includes check valve |
|
| Strong, high-capacity sewage pump included |
|
| Heavy-duty performance HP cast iron pump handles up to 2" solids |
|
| Easy Installation comes with 2" NPT threaded discharge and vent flanges |
|
| Easy to Use includes prewired 10' power cord |
|
| Superior Construction 30 gallon reservoir made from the highest quality structural foam |
|
|
Specifications
|
|
Brand
|
Simer
|
|
Catalog Number
|
3963C
|
|
Type
|
Pre-Plumbed Sewage Basin
|
|
Series
|
Sewage Pumps
|
|
Model Number
|
3963C
|
|
HP
|
1/2
|
|
Warranty
|
1-Year
|
|
Switch Type
|
Tethered
|
|
Min Sump Diameter
|
18"
|
|
Max Lift
|
18'
|
|
Carton (L x W x H)
|
22" x 22" x 31"
|
|
Approx. Weight
|
59 lbs.
|
|
Body Construction
|
Basin & Lid: Structural Foam
|
|
Body Construction
|
Pump: Cast Iron
|
|
Maximum Head
|
18'
|
|
Maximum Capacity
|
9000 GPH
|
|
Flow at 10' Lift
|
5400 GPH
|
|
Basin Diameter
|
20'
|
|
Basin Depth (Height)
|
30"
|
|
Discharge Pipe Size
|
2" NPT
|
|
Max Solids Handling Size
|
2" Spherical
|
|
AMP Draw
|
13 Amps
|
|
Cord Length
|
10'
|
|
Voltage
|
115V AC, 60 Hz
|
|
Max Liquid Temp
|
130F
|
|
Additional Specs
|
See Support Documents
|
Item Number:
3963C
Manufacturer:
Simer
Manufacturer Part No:
3963C
|
|
|
