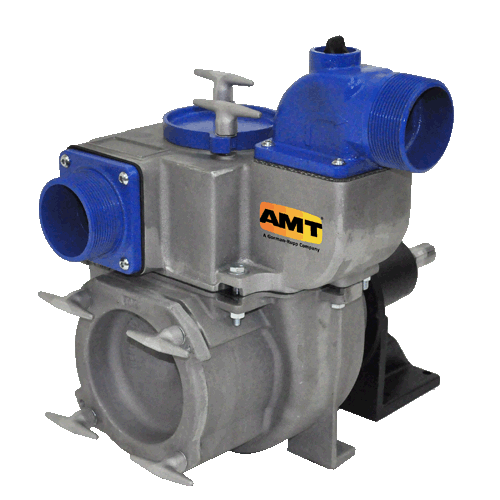

AMT Pumps 3993-99, 4" Self-Priming Solids Handling Pedestal Drive Pump (15 HP, Viton Seal, 1/4" x 1-1/4" Keyway, 4" Male Suction and Discharge)
| Applications |
| AMT Self-Priming Solids Handling Pedestal pumps are designed for direct or belt drive. Specific units are available in cast aluminum, cast iron or thermoplastic construction material. The units feature 3/8" to 2" solids handling construction and are fitted with a cast iron bearing housing, which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses. The 3" & 4" trash pump models feature cleanout covers with quick release handles for removal of debris. All units are self-priming to 20 feet. |
| |
| Features |
| Models 3993-99 |
| Cast Aluminum Construction |
| 2" NPT Suction & Discharge Ports |
| Maximum Temperature 180 F |
| Self-priming to 20 Ft. |
| 2" Diameter – Trash Pump |
| Heavy Duty Cast Iron Bearing Housing Containing (2) Precision Sealed Ball Bearings |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
3993-99
|
|
Type
|
Pedestal Drive Pumps
|
|
Construction
|
Cast Aluminun
|
|
Series
|
Self-Priming Solids Handling Pedestal Drive Pumps
|
|
Curve
|
A
|
|
SUC
|
4" Male
|
|
DIS
|
4" Male
|
|
L
|
23.0"
|
|
W
|
9.3"
|
|
H
|
20."
|
|
Keyway
|
1/4" x 1-1/4"
|
|
Solids Handling Capability
|
2" Diameter
|
|
Seal
|
Viton
|
|
Required HP @ 3600 RPM
|
15
|
|
Motor
|
Not included
|
|
Coupling
|
Not included
|
|
Power Cord
|
Not included |
|
Ship Wt. (Lbs.)
|
133
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
3993-99
Manufacturer:
AMT
Manufacturer Part No:
3993-999-99
|
|
|
