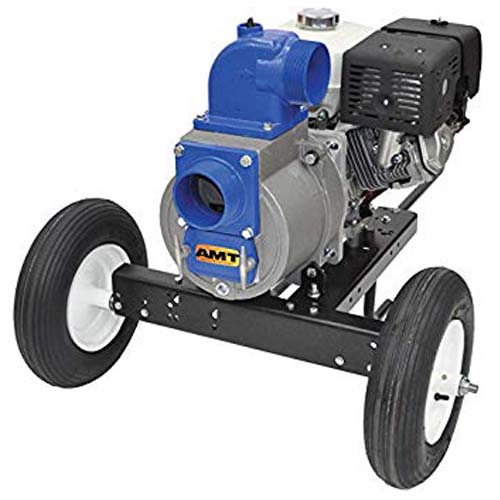

AMT Pumps 3994-96, 4" Engine Driven Trash Pump (Honda OHV GX390, 10/13 HP, 4" NPT Port, Viton Seal, 2.5 Hr Run Time, 1.60 Gal Tank, Electric Start)

<< Previous in AMT 4" Trash Pumps

Next in AMT 4" Trash Pumps >>

Images may be generic. Please inquire

MSRP: $5,794.00

Your Price: $3,762.34

You Save: $2,031.66 (35 %)

Quantity:

Email this page to a friend

Description
Details
Reviews

Applications

AMT Engine Driven Trash pumps are designed for applications which require high flow efficiency and solid handling capability. These pumps are constructed of heavy duty sand cast aluminum components featuring removeable/replaceable cast iron volutes, impellers and wearplates. Simple cleanout design permits easy removal of trash and debris without disconnecting hoses. Cast iron discharge port rotates in 90 increments. An electric start option is available on many models.

Features

Cast Iron Male NPT Suction & Discharge Ports

Viton/Silicon Carbide Mechanical Seal

Buna-N O-ring and Casing Seal

Self-primes to 20 Feet with Built-in Buna Check Valve

Stainless Steel Shaft Sleeve

Steel Suction Strainer Included

B & S Vanguard and Honda Engines are Overhead Valve (OHV) Designs with Low Oil Alert

Cast Iron Replaceable Volute/Wearplate and Impeller

Maximum Temperature 180 F

3" Models Featured in Heavy Duty Steel Roll Frame

4" Models Include Wheel Kit and Base Rails

Specifications
Brand	AMT
Catalog Number	3994-96
Type	Engine Driven Self-Priming Trash Pumps
Series	4" Trash Pumps
Curve	C
Port	4" NPT
Driver	Honda OHV GX390
Seal	Viton / SIC
Run Time (Hours)	2.5
Tank Size (Gal/Ltr.)	1.60/6.1
Ship Wt. (Lbs.)	300
HP Class	10/13 HP
SUC	4" NPT
DIS	4" NPT
Electric Start	Included
Oil Alert	Included
Alternative Start	Recoil Start
Wheel Kit	Included
L	44.4"
W	37.5"
H	30.6"
Warranty	1 Year
Notes	See Support Documents
