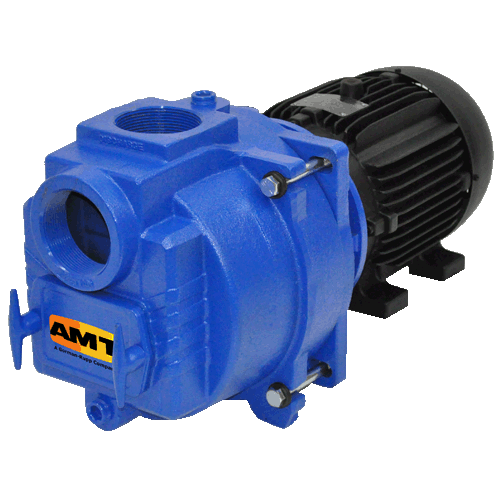

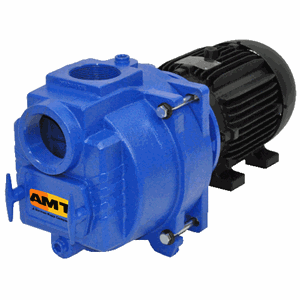

AMT Pumps 399D-95, 4" Cast Iron Trash Pump (15 HP, 4" NPT, 3 Phase, TEFC,230/460 V, 2" Max Solids)
| Applications |
| AMT Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Pumps are available in three NPT port sizes: 2", 3" or 4". Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85% maximum 15% solids. |
| |
| Features |
| Cast Iron Construction for Abrasive Resistance and Durability |
| Silicon Carbide/Viton Mechanical Seal |
| Built-in Buna-N Check Valve |
| Buna-N O-ring Casing Seal Reusable After Clean Out Maintenance |
| Self-Cleaning Stainless Steel Impeller Resists Clogging and Wear |
| Pull-from-Rear Design Permits Clean Out and Repair Without Removing Piping |
| 3" & 4" Models Feature Front Cleanout |
| Replaceable Cast Iron Volute/Wearplate Designed for Solids Handling |
| Motor Includes Stainless Steel Shaft or Stainless Steel Shaft Sleeve |
| Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors |
| Single or Three Phase, 3450 RPM Motors |
| Optional Mounting Base Available. |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
399D-95 (Replaced 399C-95)
|
|
Type
|
Trash Pumps
|
|
Series
|
Cast Iron Sewage & Trash Pumps
|
|
HP
|
15
|
|
SUC
|
4" NPT
|
|
DIS
|
4" NPT
|
|
Curve
|
E
|
|
Phase
|
3
|
|
ENC
|
TEFC
|
|
Frame
|
215JM
|
|
Voltage @ 60 Hz +
|
230/460
|
|
Full Load Amps
|
47/24
|
|
Max Solids
|
2"
|
|
Ship Wt. (Lbs.)
|
275
|
|
Warranty
|
1 Year
|
|
Optional Mounting Base
(184/215 JM Frames Only)
|
Model A200-90
|
|
Notes
|
See Support Documents
|
Item Number:
399D-95
Manufacturer:
AMT
Manufacturer Part No:
399D-999-95
MSRP: $515.00
Your Price: $334.42
You Save: $180.58 (35 %)
A200-90 AMT Mounting Base (designed for 145/182/184/215JM Frames)
| | |
|
|
|
