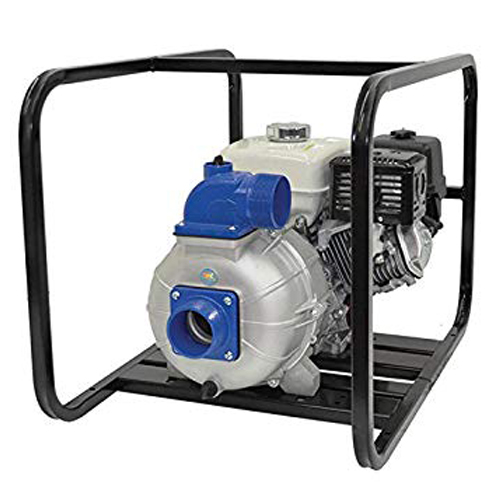

AMT Pumps 3P9XLR, 3" Engine Driven Portable High Pressure Pump (8 HP, LCT 306CC Driver)

Images may be generic. Please inquire

MSRP: $1,653.00

Your Price: $1,073.38

You Save: $579.62 (35 %)

Quantity:

Email this page to a friend

Applications
IPT 3" Engine Driven Portable High Pressure pumps are cast aluminum construction with cast iron volute and male NPT ports. Pump applications include fire protection and irrigation. These pumps are available with a wide choice of standard and heavy duty gasoline or diesel fueled engines. These pumps feature high efficiency closed cast aluminum impeller. All models come equipped with EPDM/EPR elastomers and seals. Most models include a heavy duty steel roll frame.
Features
• Removable/Replaceable Cast Iron Suction & Discharge Flanges
• 3" Male NPT Discharge Port Rotates in 90 Increments
• One Tool Serviceability, Tool Included with Engine Driven Models (Not with Kits)
• Includes Strainer and Rubber Foot Mounting
• Maximum Temperature 180 F
• Cast Aluminum Construction Cast Aluminum Construction
• EPDM/EPR Mechanical Seals
• Utilized for Fire Protection or Irrigation
• Large Pump Casing Increases Capacity
• Built-in Check Valve For Fast Priming
• Includes Strainer and Rubber Foot Mounting
• Optional High Pressure Hose Kit and Wheel Kit Available
• Pedestal Versions Available

Specifications
Brand	AMT
Catalog Number	3P9XLR
Type	High Pressure Pumps
Series	3" Engine Driven Portable High Pressure Pumps
HP Class	8 HP
Curve	A
Port	3" NPT
Driver	LCT 306CC
Seal	EPDM/EPR/CAR/CER
Run Time (Hours)	2.2
Tank Size (Gal/Ltr.)	0.95 / 3.6
Ship Wt. (Lbs.)	145
Discharge	3" NPT
Suction	3" NPT
Max Total Head	200 Ft.
Max GPM	185 GPM
Max PSI (Approx.)	87 PSI
Oil Alert	Included
Length	31.0"
Width	22.5"
Height	23.6"
Warranty	1 Year
