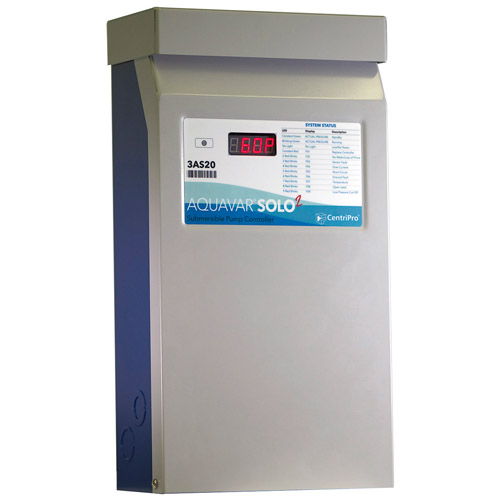

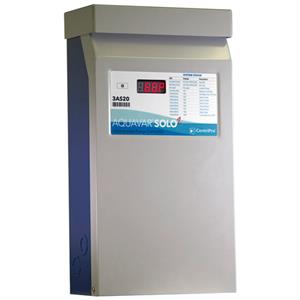

3AS20 Goulds AQUAVAR SOLO CNTRLR 2HP KIT

The Solo2 provides reliable consistent water pressure, regardless of water consumption.  It retrofits to any existing well system and helps provide total system protection, avoiding costly repairs.  It can be installed on an existing conventional 4" well pump system.

Features

• Input voltage: single-phase, 230V
• Output voltage: variable frequency, variable voltage, three-phase power to the motor
• Speed selector switch: selects output frequency of either:
• 30 - 60 Hz - Use matched HP water end and motor
• 30 - 80 Hz - Use mis-matched water end and motor
• NEMA 3R enclosure: rainproof, outdoor/indoor rated enclosure
• Ambient temperature: 14ºF to 122ºF
• Simple rotary switch to set current limit to match motor Service Factor Amps (SFA)
• Simple wiring and menu set-up
• Turns virtually any conventional system into a premium constant pressure system
• Fade-resistant LED display indicates system pressure, speed and current
• Displays last four faults and can be reset
• Dual setpoint feature for advanced system application
• Programmable output relay can be configured to control an external device such as a pump, accessories or sending status signal to a monitoring device
• Pressure set point adjustable from 20 - 85 psi using the standard 100 psi sensor
• Pressure transducer and 10 ft pressure sensor cable included
