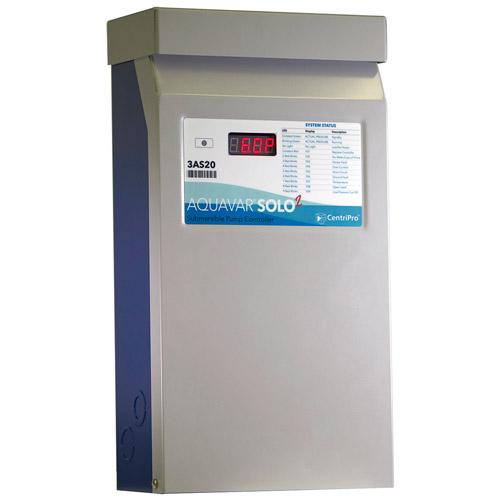

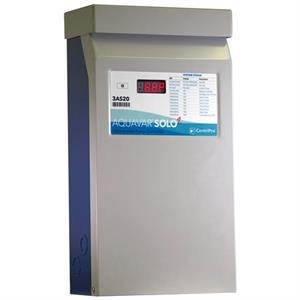

3AS50 Goulds Pumps Aquavar Solo, Variable Speed, Constant Pressure Controller With Transducer, (230 Volts, Single Phase Input)

FEATURES
Goulds Aquavar Solo Submersible Pump Controller

The Solo2 provides reliable consistent water pressure, regardless of water consumption. It retrofits to any existing well system and helps provide total system protection, avoiding costly repairs. It can be installed on an existing conventional 4" well pump system.

Features

Input voltage: single-phase, 230V
Output voltage: variable frequency, variable voltage, three-phase power to the motor
Speed selector switch: selects output frequency of either:
30 - 60 Hz - Use matched HP water end and motor
30 - 80 Hz - Use mis-matched water end and motor
NEMA 3R enclosure: rainproof, outdoor/indoor rated enclosure
Ambient temperature: 14ºF to 122ºF
Simple rotary switch to set current limit to match motor Service Factor Amps (SFA)
Simple wiring and menu set-up
Turns virtually any conventional system into a premium constant pressure system
Fade-resistant LED display indicates system pressure, speed and current
Displays last four faults and can be reset
Dual setpoint feature for advanced system application
Programmable output relay can be configured to control an external device such as a pump, accessories or sending status signal to a monitoring device
Pressure set point adjustable from 20 - 100 psi using the standard 200 psi sensor
Pressure transducer and 10 ft pressure sensor cable included
