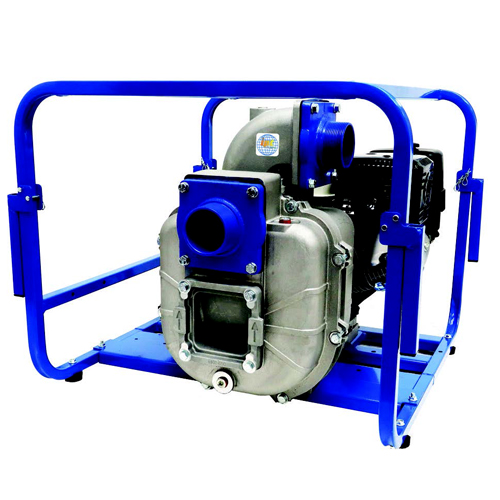

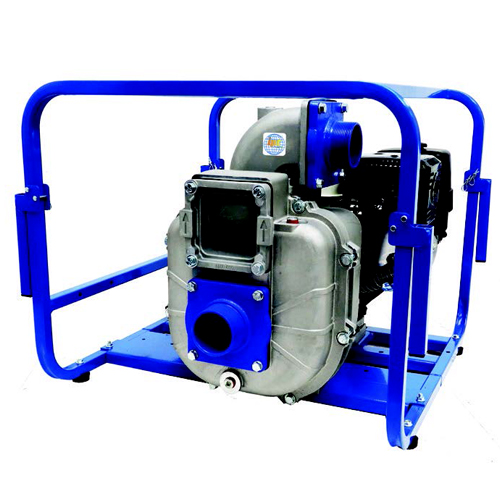

3HY13HR AMT Self-Priming High Pressure Hydroseeding Pump (13 HP, 3" Discharge, Honda GX390 Driver, 2.5 Hr Run Time, 1.6 Gal Tank, Electric Start)
| Applications |
| The AMT IPT line of Self-Priming High Pressure Pumps, also known as Hydroseeder Pumps, delivers both excellent pressure and flow for many applications including, but not limited to: general dewatering, agricultural spraying, hydroseeding, washdown, fire protection, and irrigation. These single stage centrifugal pumps are sand cast aluminum construction with cast iron wear parts, male NPT ports, and EPDM/EPR Elastomers. They are available with gasoline engines, offered in both 3 and 4 models, and come standard with a heavy duty steel frame, suction strainer, and designed for easy maintenance with servicing tool included. |
| |
| Features |
| EPDM/EPR Mechanical Seal, O-Rings, and Gaskets. |
|
| Convertible High or Low Suction Port for Improved Efficiency Dependent on Self- Priming or Flooded Applications |
|
| Built-In EPDM Flapper/Check Valve Permits Priming up to 20' |
|
| Discharge Port Rotates 180 Increments |
|
| Available with Honda E-Start Gasoline Engine. |
|
| INCLUDES: Servicing Tool, Suction Strainer, and Heavy Duty Steel Frame with Battery Tray Included |
|
| Optional High Pressure Hose Kit or Wheel Kit Available. |
|
| * See Support Documents for GPM, TDH AND PSI Curve chart. |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
3HY13HR
|
|
Type
|
3" High Pressure Hydroseeding Pump
|
|
Series
|
Engine Driven Pumps
|
|
HP
|
13
|
|
Discharge
|
3"
|
|
Driver
|
Honda GX390
|
|
Oil Alert
|
Included
|
|
12VDC Electric Start
|
Included (Battery not Included)
|
|
Tank Size (Gal/Ltr)
|
1.6/6.1
|
|
Run Time (HR.)
|
2.5
|
|
Ship Wt. (lbs.)
|
175
|
|
Length
|
31"
|
|
Width
|
29.5"
|
|
Height
|
25.1"
|
|
Construction
|
Sand Cast Aluminum
|
|
Heavy Duty Steel Roll Frame
|
Included
|
|
Battery Tray
|
Included
|
|
High Pressure Hose Kit or Wheel Kit
|
Optional (Not Included)
|
|
Max Solids Handling
|
up to 5/8"
|
|
Max Temp
|
180 F
|
|
Notes
|
See Support Documents
|
Item Number:
3HY13HR
Manufacturer:
AMT
Manufacturer Part No:
3HY13HR
MSRP: $271.00
Your Price: $175.97
You Save: $95.03 (35 %)
