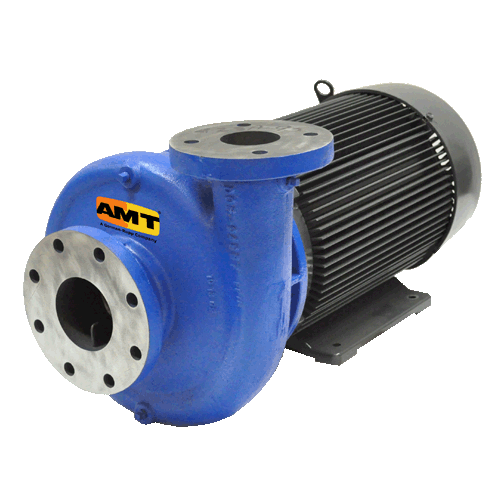

4281-95 AMT 1750 RPM Straight Centrifugal Pump (25 HP, 284JM Frame, TEFC Enclosure, 208-230/460 Volts, 4" Suction, 3" Discharge)
| Applications |
| The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. |
| |
| Features |
| Viton Silicon Carbide/Carbon Mechanical Seal |
|
| Silicon Bronze Precision Cast Dynamically Balanced Impeller |
|
| Bronze Case Wear Ring |
|
| 4" x 3" 125 Lb. 8-Bolt Flanged Suction Port & 4-Bolt Flanged Discharge Port |
|
| 1/4 " NPT Gauge Taps on Suction & DischargePorts for System Monitoring |
|
| Bronze Shaft Sleeve to Protect Motor Shaf |
|
| Maximum Casing Pressure 175 PSI |
|
| Maximum Temperature 200 Degree F |
|
| Includes Seal Flush/Air Relief Valve |
|
| Front Drain Plugs |
|
| 1750 RPM TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
4281-95
|
|
Type
|
1750 RPM Straight Centrifugal Pumps
|
|
Series
|
Straight Centrifugal Pumps
|
|
HP
|
25
|
|
Frame
|
284JM
|
|
Enclosure
|
TEFC
|
|
Volts
|
208-230/460
|
|
Hz
|
60
|
|
Suction
|
4"
|
|
Discharge
|
3"
|
|
Max Solids
|
1/4"
|
|
Construction
|
Cast Iron
|
|
Notes
|
See Support Documents
|
Item Number:
4281-95
Manufacturer:
AMT
Manufacturer Part No:
4281-95
|
|
|
