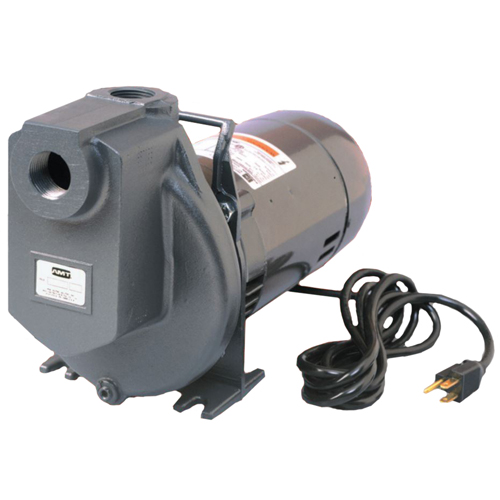

AMT Pumps 4292-96, 1" Self-Priming Utility Pump (1/2 HP, 1 Phase, 115V, 1" NPT Suction and Discharge, ODP Enclosure, Aluminum Casing)
| Applications |
| The AMT Self-priming Centrifugal pump is compact and designed for a wide range of dewatering/recirculating applications. |
| AMT Model 4292-96 is designed to be portable and handle many water transfer services including: storm drainage, emergency water supply, wash down and pool/spa tub draining. Selfcleaning, semi-open impeller handles solids up to 1/8" diameter. |
| Features |
| Cast Aluminum Construction |
|
| Buna-N Mechanical Seal and O-Ring |
|
| 1 NPT Suction and Discharge Ports |
|
| Two Garden Hose Adapters and Carry Handle Included |
|
| 1/2 HP NEMA 56J Open Drip Proof (ODP) Motor with 8 Ft. 115 VAC Cord |
|
| Maximum Suction Lift 6 Ft. |
|
|
|
|
Specifications
|
|
Brand
|
AMT Pumps
|
|
Catalog Number
|
4292-96
|
|
Type
|
Utility Pumps
|
|
Series
|
1" Self-Priming Utility Pumps
|
|
Curve
|
C
|
|
HP
|
1/2
|
|
PH
|
1
|
|
ENC
|
ODP
|
|
Voltage @ 60 Hz
|
115
|
|
Full Load Amps
|
10
|
|
Suction
|
1" NPT
|
|
Discharge
|
1" NPT
|
|
Casing
|
Aluminum
|
|
Shaft Seal
|
Buna-N/SS
|
|
Impeller
|
Aluminum
|
|
L
|
16.1"
|
|
W
|
6.5"
|
|
H
|
8.7"
|
|
Ship Wt. (Lbs.)
|
30
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
4292-96
Manufacturer:
AMT
Manufacturer Part No:
4292-999-96
|
|
|
