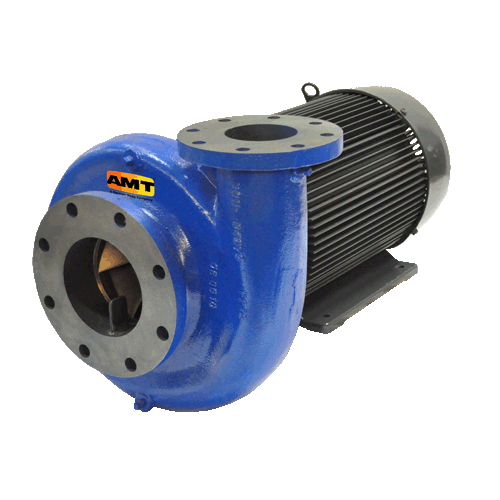

4301-95 AMT 1750 RPM Straight Centrifugal Pump (30 HP, 3 Phase, 286JM Frame, TEFC Enclosure, 208-230/460 Voltage, 6" Suction, 4" Discharge)
| Applications |
| The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers performance that minimizes operation and energy costs. Built to last, each pump features a precision cast stainless steel impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. |
| |
| Features |
| Cast Iron Construction |
|
| Stainless Steel Precision Cast Dynamically Balanced Impeller |
|
| Viton Silicon Carbide/Carbon Mechanical Seal |
|
| 6" x 4" 125 Lb. 8-Bolt Flanged Suction Port and 4-Bolt Flanged Discharge Port |
|
| Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping |
|
| 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring |
|
| Bronze Shaft Sleeve to Protect Motor Shaft |
|
| Maximum Temperature 200 Degrees F |
|
| Includes Seal Flush/Air Relief Valve |
|
| Front Drain Plugs |
|
| TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
4301-95
|
|
Type
|
6" x 4" 1750rpm Straight Centrifugal Pump
|
|
Series
|
AMT 6 x 4 inch 1750rpm Straight Pumps
|
|
HP
|
30
|
|
Phase
|
3
|
|
Frame
|
286JM
|
|
Enclosure
|
TEFC
|
|
Voltage
|
208-230/460
|
|
Full Load Amps
|
80/36
|
|
Suction
|
6"
|
|
Discharge
|
4"
|
|
Max Solids
|
1/4" Diameter
|
|
Notes
|
See Support Documents
|
Item Number:
4301-95
Manufacturer:
AMT
Manufacturer Part No:
4301-95
|
|
|
