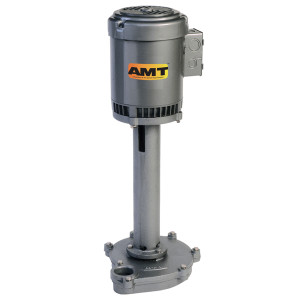

AMT Pumps 4441-95 Heavy Duty Industrial Coolant Pump (3/4 HP, 3 PH, 208-230/460V, TEFC, 1-1/2" NPT Discharge)
| Applications | | The AMT Heavy Duty Industrial Coolant pump has been designed for a broad range of Industrial/Commercial coolant and recirculating applications. | | | | Features | | Cast Iron Casing and Column | | | 3/4" to 1-1/2" NPT Discharge Port | | | Includes Universal Mounting Bracket | | | Self-cleaning, Semi-open Stainless Steel Impeller | | | Single or Three Phase 56C Motor Available | | | 1/8 to 3/4 HP TEFC Motor, 1725 RPM | | | Maximum Temperature 200 F | | | QSP - Quick Ship Pumps | | | Specifications | | Brand | AMT | | Catalog Number | 4441-95 | | Type | Coolant Pump | | Series | Heavy Duty Industrial Coolant Pump | | Curve | D | | HP | 3/4 | | PH | 3 | | ENC | TEFC | | V | 208-230/460 | | Full Load Amps | 3/2 | | DIS | 1-1/2" NPT | | A | 6.3 [160.0] | | B | 9.8 [248.9] | | C | 16.1 [408.9] | | D | 2.3 [58.4] | | E | 3.9 [99.0] | | F | 2.9 [73.6] | | G | 5.0 [127.0] | | J | 4.9 [124.4] | | L | 10.7 [271.7] | | W | 9.2 [233.6] | | H | 19.7 [500.3] | | Ship Wt. (Lbs.) | 47 | | Warranty | 1 Year | | Notes | See Support Documents |
Item Number:
4441-95
Manufacturer:
AMT
Manufacturer Part No:
4441-999-95
|
|
|
