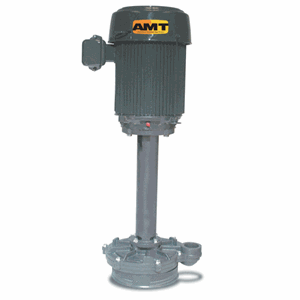

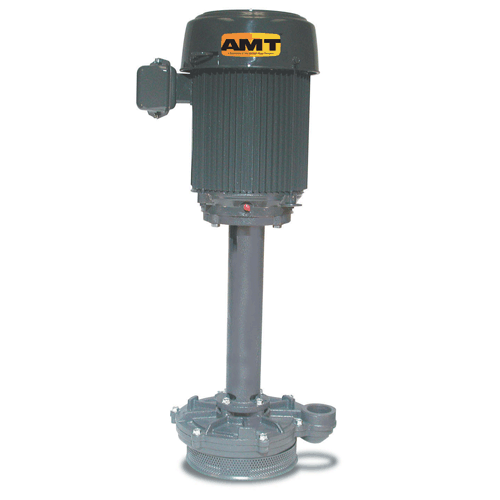

AMT Pumps 4446-95 Vertical Sealless Sprayer Washer Pump (3 HP, 3 Phase, 230/460V, TEFC Enclosure, 1-1/2" NPT Discharge, 8/4 Full Load Amps)
| Applications |
| AMT Vertical Sealless Sprayer/ Washer pumps are designed for OEM, automotive and industrial washing machines, parts cleaners, spray booths and cooling towers. No bottom bearing design and stainless steel impeller resists errosion from abrasives and ensures a long, maintenance free life for the pump. CNC machined stainless steel pump shafts. Built-in stainless steel suction screen protects pump from clogging and damage caused by large solids. Heavy duty universal mounting plates permit easy installation into existing tanks, booths, equipment, etc. |
| |
| Features |
| Cast Iron Construction with 300 Series Investment Cast Stainless Steel Impeller |
|
| Stainless Steel Pump Shaft |
|
| No Bottom Bearing! |
|
| Maximum Temperature 200 F |
|
| Maximum Flow 140 GPM |
|
| Maximum Head 140 ft. (61 PSI) |
|
| Stainless Steel Suction Screen |
|
| Includes Heavy Duty Universal Mounting Plates |
|
| Standard 56C or JM Shaft Motors |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
4446-95
|
|
Type
|
Sprayer/Washer Pumps
|
|
Series
|
Vertical Sealless Sprayer Washer Pumps
|
|
Curve
|
A
|
|
HP
|
3
|
|
Phase
|
3
|
|
Enclosure
|
TEFC
|
|
Voltage
|
230/460
|
|
Full Load Amps
|
8/4
|
|
Discharge
|
1-1/2" NPT
|
|
Ship Wt. (Lbs.)
|
73
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
4446-95
Manufacturer:
AMT
Manufacturer Part No:
4446-999-95
|
|
|
