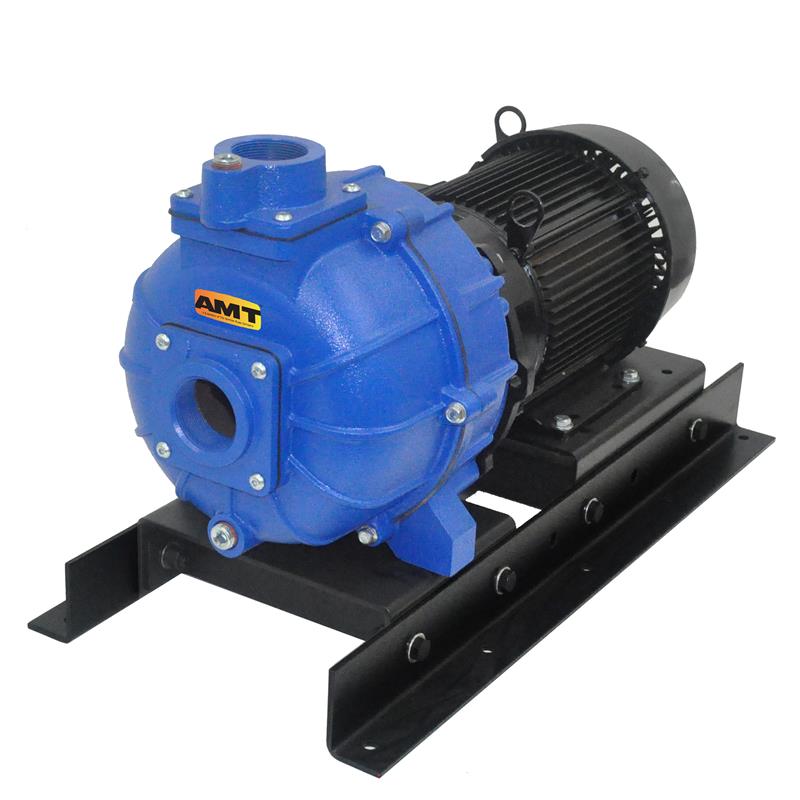

AMT Pumps 4802-95, 2" Self-Priming High Pressure Pump (7.5 HP, 3 PH, 2" Discharge, 2" Suction, TEFC, Cast Iron, 208-230-460V)

Images may be generic. Please inquire

MSRP: $2,542.00

Your Price: $1,650.65

You Save: $891.35 (35 %)

Quantity:

Email this page to a friend

Applications
AMT 2 Self Priming High Pressure Pumps are self-priming high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valve for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2 to 10 horsepower TEFC electric motors.

Features
Cast Iron Construction with Dual Closed Vane Aluminum Impellers
Viton Mechanical Seal w/ Silicon Carbide and Carbon Faces
Built in EPR/EDPM Check Valve permits Self-Priming up to 20 Ft.
Closed Vane Aluminum Impeller design for High Pressure Performance
Fill and Drain Plugs for Easy Installation and Servicing
2 NPT Suction and Discharge Ports
Maximum Temperature 180 F
Maximum Working Pressure 150 PSI
Optional Mounting Base Available (A200-90) available on all models
Hazardous Duty/Xplosion Proof Motors Available; Call for Quote and Lead Time

Specifications
Brand	AMT
Catalog Number	4802-95
Type	2" Self-Priming High Pressure Pump
HP	7.5
Phase	3
Suction	2"
Discharge	2"
Type	TEFC
Frame	184JM
VAC/60 Hz	208-230/460
Material	Cast Iron
Seal	Viton/Sil/Car
Full Load Amp	22/11
Ship WT (lbs)	160
Self-Priming	to 20'
Max Head	270 ft
Max PSI	116
Max GPM	90
QSP	N
Optional Base	Model A200-90
