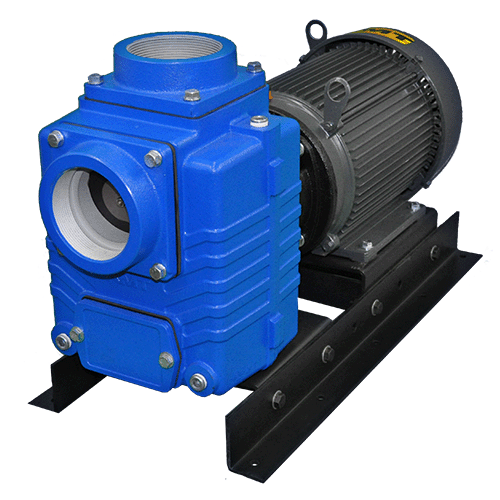

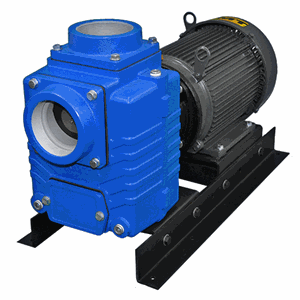

AMT Pumps 4872-95 4" Self Priming Centrifugal Pump (15 HP, 3 PH, 208-230/460V, 36/18 FLA, 215JM Frame, Cast Iron, Buna-N Shaft Seal)
| Applications |
|
AMT Self-Priming Cast Iron Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open stainless steel impeller, which can handle 1/2" diameter semi-solids. Built-in check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing.
|
| Hazardous Duty/Xplosion Proof 10HP, 3 Phase Motors Only. Call for quotation. |
| Optional Viton Mechanical Seal and Flapper Valve Available. Call for quotation. |
| Optional Silicon Carbide Seal Available. Call for quotation. |
| Optional Mounting Base (A200-90) Not Included |
| Features |
| Cast Iron Construction with Stainless Steel Impeller |
|
| Buna-N Mechanical Seal, Check Valve and O-Ring |
|
| 4" NPT Suction and Discharge Ports |
|
| Maximum Solids Handling 1/2" |
|
| Maximum Temperature 180 F |
|
| Self-Priming to 20 Ft. |
|
| Self-Cleaning, Semi-Open Impeller |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
4872-95
|
|
Type
|
Self Priming Centrifugal
|
|
Series
|
4" Self Priming Centrifugal Pump
|
|
HP
|
15
|
|
PH
|
3
|
|
Voltage @ 60 HZ
|
208-230/460
|
|
Full Load Amps
|
36/18
|
|
Frame
|
215JM
|
|
Suction
|
4
|
|
Discharge
|
4
|
|
Casing
|
Cast Iron
|
|
Shaft Seal
|
Buna-N/SS
|
|
Base Length
|
32
|
|
Base Width
|
15
|
|
Base Height
|
16
|
| Mounting Base (A200-90) |
Not Included
|
|
Warranty
|
1 Year
|
Item Number:
4872-95
Manufacturer:
AMT
Manufacturer Part No:
4872-999-95
MSRP: $515.00
Your Price: $334.42
You Save: $180.58 (35 %)
487X-300-V0 AMT Pump Viton Seal and Flapper Valve Installed
|
MSRP: $515.00
Your Price: $334.42
You Save: $180.58 (35 %)
A200-90 AMT Mounting Base (designed for 145/182/184/215JM Frames)
| |
|
|
|
