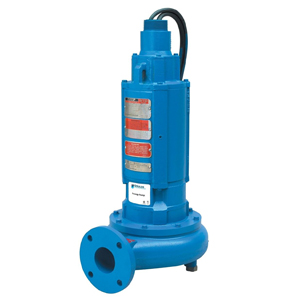

4SDX16H6HC Goulds Submersible Pump, 4" FLANGE Discharge, 3 HP, 3 Phase, 380V, 1450 RPM, 6.5 Amps, 3" Max Solids, 7.12" Impeller, Cast Iron, 4SDX

WEIGHT 270.000000
BRAND Goulds Water Technology
MPN 4SDX16H6HC
SERIES 4SDX
DISCHARGE 4"
CONNECTION Flange
MAX HEAD 31.00 FT
MAX FLOW 500.00 GPM
HORSEPOWER 3 HP
PHASE 3
FREQUENCY 50 HZ
VOLTAGE 380V
SPEED (RPM) 1450
MOTOR XP
AMPS 6.5
MAX SOLIDS 3"
IMPELLER SIZE 7.12"
IMPELLER MATERIAL Cast Iron
HOUSING Cast Iron
MECHANICAL SEAL Carbon vs. Ceramic
ELASTOMERS BUNA-N
MAX TEMP (°F) 104
CORD LENGTH 25'
