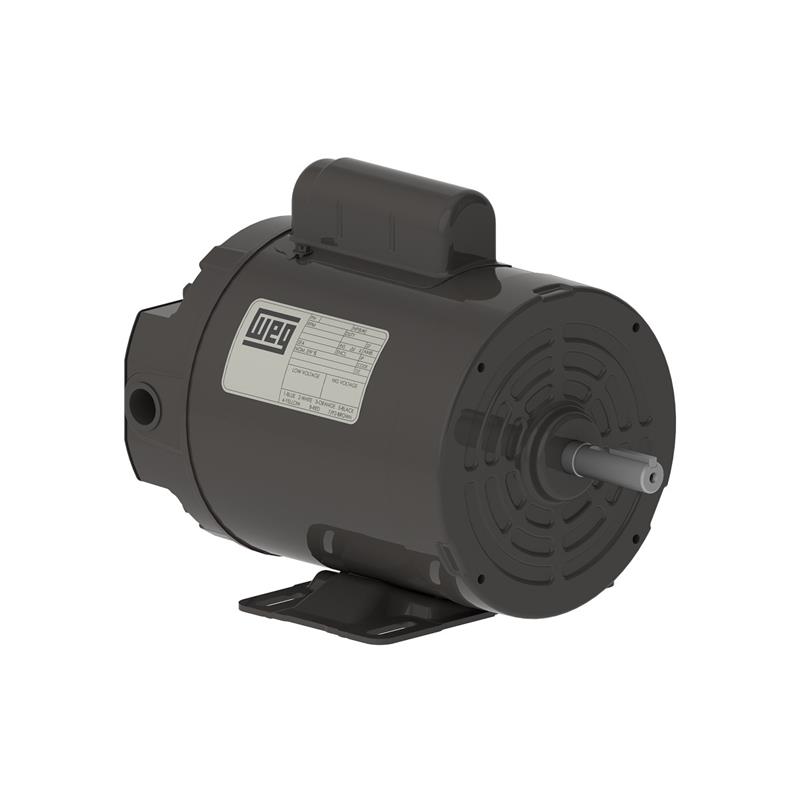

.5018ES1BPFC56 WEG Motor (0.5 HP, 1800 RPM, 1 Phase, C56 Frame, TEAO Enclosure, 115/208-230 Voltage)
| Applications |
| WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators. |
| |
| Features |
| Double shielded ball bearings |
|
| Insulation class B |
|
| Automatic Reset Thermal Overload Protector |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Catalog Number
|
.5018ES1BPFC56
|
|
Type
|
Farm Duty Motors
|
|
HP
|
0.5
|
|
KW
|
0.37
|
|
RPM
|
1800
|
|
Phase
|
1
|
|
C Dimension
|
11.102
|
|
Service Factor
|
1.25
|
|
Frame
|
C56
|
|
Enclosure
|
TEAO
|
|
Full Load Amps
|
4.2
|
|
Mount
|
Foot Mount
|
|
Voltage
|
115/208-230
|
|
Warranty
|
1 Year
|
Item Number:
.5018ES1BPFC56
Manufacturer:
WEG
Manufacturer Part No:
.5018ES1BPFC56
|
|
|
