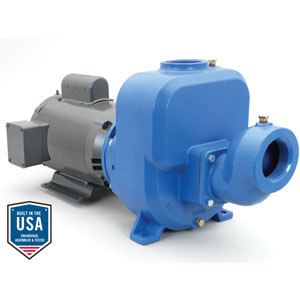

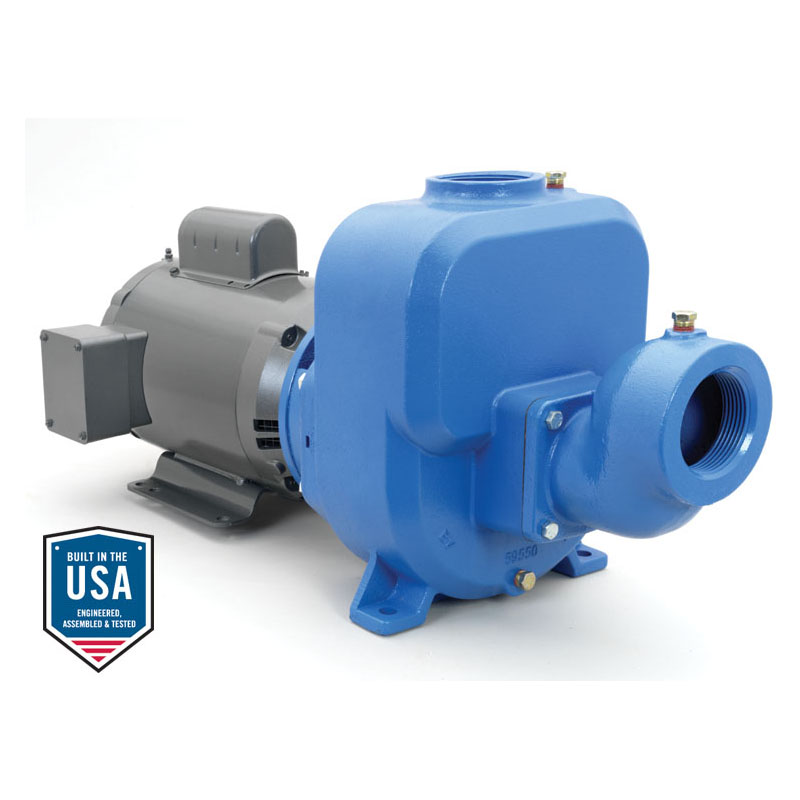

Goulds Pumps 50SPM10 Self Priming Centrifugal Pump (5 HP, 1 Phase, ODP Enclosure, 230 Voltage, 60 Hz, 2" Discharge)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| Goulds Self-Priming Centrifugal Pumps Prime Line SP, SPM & SPH Series. For use in: Lawn irrigation, Dewatering, Liquid transfer, Plot irrigation, Livestock watering |
| |
| Features |
| Self-Priming Design: Features a replaceable check valve which acts to retain sufficient liquid in the casing to assure fast, reliable priming and repriming capabilities. Once initially primed the pump will reprime automatically should suction be lost. |
|
| Impeller and Wear Ring: Silicon Bronze construction, replaceable wear rings extend pump life, designed for maximum efficiency and repriming capabilities. Impeller is enclosed type, balanced for smooth operation, keyed to motor shaft. |
|
| Casing and Diffuser: Cast iron construction, featuring a back pull-out design with tapped connections provided for casing fill and drain to simplify pump start up and removal at the end of the season. |
|
| Shaft Sleeve: 300 series stainless steel replaceable sleeve provides motor shaft protection. |
|
| Mechanical Seal: Carbon/Ceramic faces, BUNA elastomers, 300 series stainless steel metal parts. |
|
| * Premium efficiency where required by Department of Energy regulations. |
|
| Accessory: SPS83 Suction Strainer (Sold Separately) |
|
|
Specifications
|
|
Brand
|
Goulds
|
|
Catalog Number
|
50SPM10
|
|
Type
|
Medium Head Self-Priming Centrifugal Pumps
|
|
Series
|
SPM
|
|
HP
|
5
|
|
Phase
|
1
|
|
Enclosure
|
ODP
|
|
Voltage
|
230
|
|
Discharge
|
2"
|
|
Hz
|
60
|
|
Design
|
Self Priming / End Suction
|
|
Motor
|
NEMA Standard
|
|
Suction Flange
|
SPF30
|
|
Notes
|
See Suppport Documents
|
Item Number:
50SPM10
Manufacturer:
Goulds Pumps
Manufacturer Part No:
50SPM10
|
|
|
