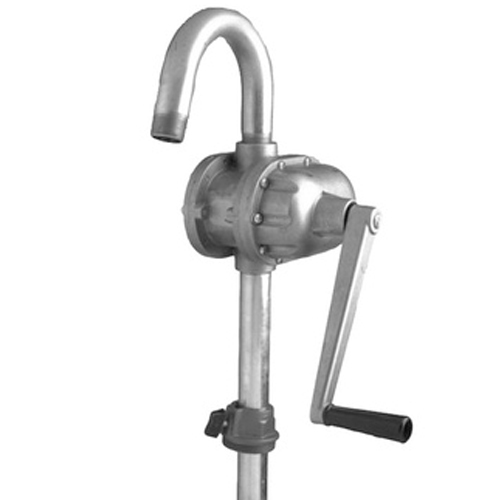

AMT Pumps 5150-96 Rotary Drum Pump (1" Inlet, 1" Outlet, Cast Aluminum/Iron)
| Applications |
| AMT Rotary Drum pumps are offered in a variety of construction materials for dispensing most types of liquids and chemicals. All units include discharge spout, bung adapter and suction tube assembly. Each model is in stock available for 24 hour shipment. AMT Rotary Drum pumps are designed for pumping liquids compatible with pump component materials. Liquids must be free of debris and any solids for proper operation. |
| |
| Features |
| Cast Aluminum Construction with Cast Iron and Steel Components |
| Buna-N Seal and Fiber Gaskets |
| Maximum Temperature 160° F |
| Suction Strainer Included |
| 16 GPM @ 70 RPM (29 oz./Stroke) |
| 1" NPT Steel Discharge Spout |
| 1" NPT x 40" Suction Tube Assembly |
| 2" Cast Iron Bung Adapter |
| Ship Weight 14 Lbs |
| High Flow Rotary Drum pump is designed for high volume transfer and dispensing of many lubricating oil and non-corrosive light liquids other than water, which are compatible with pump component materials. |
| AMT Drum pumps are capable of handling compatible liquids with a maximum 5000 SSU viscosity @ minimum 70° F liquid temperature (Equivalent to SAE 40 motor oil). Liquids must be free of debris and any solids for proper operation. Warranty is void when used beyond compatibility & temperature shown for each product and liquids containing debris/solids. |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5150-96
|
|
Type
|
Drum Pump
|
|
Series
|
Rotary Drum Pump
|
|
INLET
|
1"
|
|
OUTLET
|
1"
|
|
BUNG ADAPTER
|
Yes
|
|
SUCTION TUBE
|
Yes
|
|
CONSTRUCTION
|
Cast Aluminum/Iron
|
|
SEAL
|
Buna-N
|
|
SHIP WT (Lbs.)
|
14
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
5150-96
Manufacturer:
AMT
Manufacturer Part No:
5150-999-96
|
|
|
