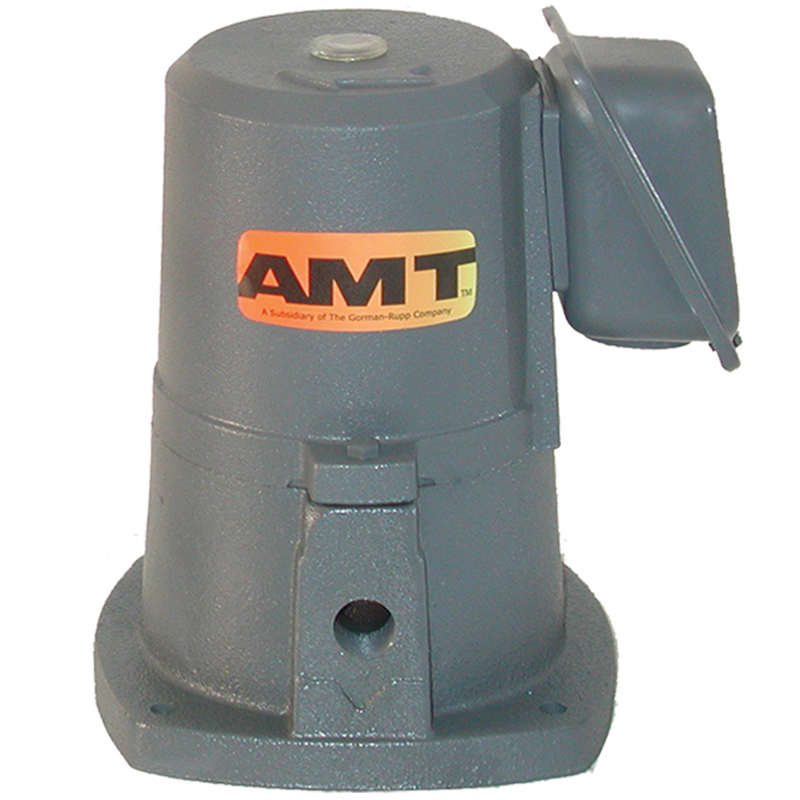

AMT Pumps 5340-95 Suction Coolant / Oil Pump (1/8 HP, 115/230V, 1 Phase, 19/50" NPT (Suction and Discharge)
| Applications |
| AMT Interchangeable Coolant/Oil pumps are dependable, economical replacement pumps equivalent to units supplied with both domestic and foreign made machine tools such as Fuji, Mitsubishi, Toshiba, Hitachi and many others. These pumps are designed for the circulation and spraying of coolants and cutting oils. Pumps are available with a stainless steel impeller for added corrosion/erosion resistance and durability. 1/8 & 1/4 HP models are available in 115/230 VAC, 60 Hz single phase and 230/460 VAC, 50/60 Hz three phase. Motors are Totally Enclosed with sealed bearings and operate at 3450 RPM. Pumps feature semi-open impellers that are ideal for handling some solids and fine contaminants. |
| |
| Features |
| Carbon/Ceramic Shaft Seal |
| Self-Priming up to 2' - Maximum Suction Lift |
| Pumps Must be Mounted Above Liquid |
| Suction Type Features |
| Cast Iron Construction |
| Stainless Steel Impeller |
| Carbon Steel Shaft |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5340-95
|
|
Type
|
Coolant/Oil Pumps
|
|
Series
|
Interchangeable Immersion & Suction Coolant/Oil Pumps
|
|
Curve
|
A
|
|
Type
|
Suction
|
|
HP
|
1/8
|
|
Phase
|
1
|
|
Voltage
|
115/230
|
|
Full Load Amps
|
0.7/0.35
|
|
Ship Wt. (Lbs.)
|
14
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
5340-95
Manufacturer:
AMT
Manufacturer Part No:
5340-999-95
|
|
|
