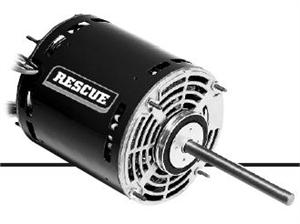

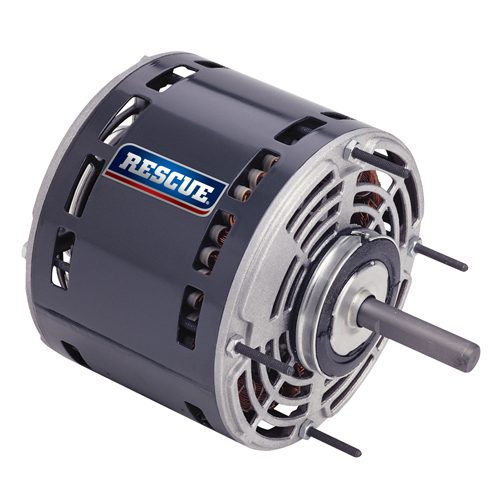

5460 U.S. Motors RESCUE Direct Drive Fan and Blower Motor, Open Air Over (1/6-1/2 HP, 115 Volts)
| Applications |
| Commercial and Residential Air Handlers and Furnaces. Can replace a range of horsepower applications and a variety of mounting styles. |
| |
| Features |
| Extended Mounting Studs |
Includes Side Shell Holes For Rheem Units |
| Designed For Use With 370v Capacitors |
Reversible Rotation |
| Class B Insulation |
Automatic Reset Thermal Overload Protector |
| 36" Leads |
2.5" Dia. Hub Rings Included |
| High Efficiency Design |
Continuous Duty, Air Over |
|
|
|
|
|
|
|
|
|
|
|
|
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
Model Number
|
5460
|
|
HP
|
1/6-1/2
|
|
Max RPM
|
1075 |
|
Volts
|
115
|
|
Cool Speed Tap
|
See Product Literature
|
|
Heat Speed
|
See Product Literature
|
|
Bearings
|
Slv
|
|
Cap MFD.
|
10
|
|
Apx. Wt. (lb)
|
15
|
|
Amps
|
7.3
|
|
Shaft N
|
5
|
|
Base XD
|
5.4
|
|
Shell XI
|
4.8
|
|
Total C
|
9.8
|
|
Enclosure
|
Open, Air Over
|
|
Diameter
|
5.6"
|
|
Type
|
Direct Drive Fan & Blower Motor
|
|
Notes
|
RESCUE Permanent Split Capacitor Motor
|
|
|
|
Item Number:
5460
Manufacturer:
U.S. Motors
Manufacturer Part No:
5460
|
|
|
