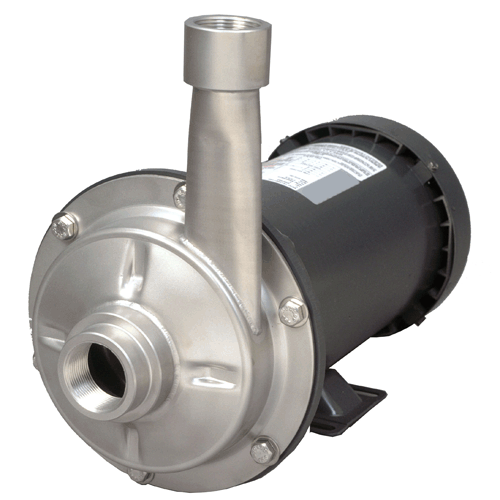

AMT Pumps 5475-98 High Volume SS Straight Centrifugal Pump (1/2 HP, 1 PH, 115/230V)
| Applications |
| AMT Stainless Steel Solids Handling End Suction Centrifugal pumps are designed for continuous duty high flow and high pressure applications including: chemical processing, liquid transfer, cooling, pressure boosting, circulating, dirty water and applications requiring contaminant free pumping. Constructed of rugged deep drawn stainless steel for durability and corrosion resistance. Investment cast stainless steel closed impeller for enhanced performance, high efficiencies and handles a maximum of 1/8" diameter solids. |
| |
| Features |
| Investment Cast Stainless Steel Impeller |
|
| Cast Iron Motor Adapter Provides Rigid Mounting |
|
| AeroSpace Fusion Welding |
|
| Stainless Steel Motor Shaft & Hardware |
|
| NEMA Base Mounted Motors |
|
| Maximum Working Pressure 150 PSI |
|
| Maximum Temperature 200 F |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5475-98
|
|
Type
|
Centrifugal Pumps
|
|
Series
|
High Volume Stainless Steel Straight Centrifugal Pumps
|
|
Curve
|
A
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Enclosure
|
ODP
|
|
Seal
|
Viton Mechanical Seal |
|
Voltage
|
115/230
|
|
Full Load Amps
|
8/4
|
|
Construction
|
Stainless Steel
|
|
Suction
|
3/4" NPT
|
|
Discharge
|
1/2" NPT
|
|
Length
|
12.7" [32.2]
|
|
Width
|
8.2" [20.8]
|
|
Height
|
7.8" [14.6]
|
|
Ship Wt. (Lbs.)
|
23
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
5475-98
Manufacturer:
AMT
Manufacturer Part No:
5475-999-98
|
|
|
