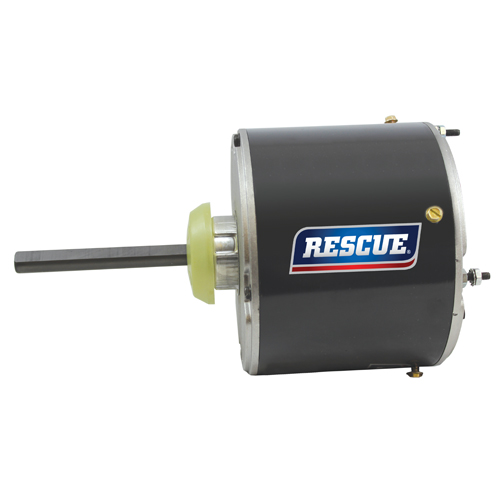

5481H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/4 - 3/4 HP, 460 Volts, 1075 RPM)
|
Applications |
|
Commercial and Residential Condensing Units. Includes Lead End Mounting Holes For Rheem or Trane Units. Can replace a range of horsepower application and a variety of mounting styles. |
|
|
|
Features |
|
High Ambient Designs | 48" Leads
|
|
Automatic Reset Thermal Overload Protector | Extended Mounting Studs
|
|
Designed For Use With 370V Capacitors | Ball Bearings
|
|
Special Treated Rotor For Corrosion Protection | Reversible Rotation
|
|
Includes Lead End Mounting Holes For Rheem or Trane Units | Continuous Duty, Air Over
|
|
High Efficiency Design |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 5481H | | HP | 1/4 - 3/4 | | RPM | 1075 | | Volts | 460 | | Max. Ambient | 158F(70C) | | Speed Tap (RPM) | High (105) | | Cap. MFD | 15 | | Amps | 2.2 | | Apx. Wt. (lb) | 22 | | Shaft N | 5 | | Shell XI | 6.3 | | Total C | 11.857 | | Enclosure | TEAO | | Diameter | 5.6" | | Type | RESCUE Condenser Fan Motor | | | | | | | | | | | | |
Item Number:
5481H
Manufacturer:
U.S. Motors
Manufacturer Part No:
K055WKW1116012B
|
|
|
