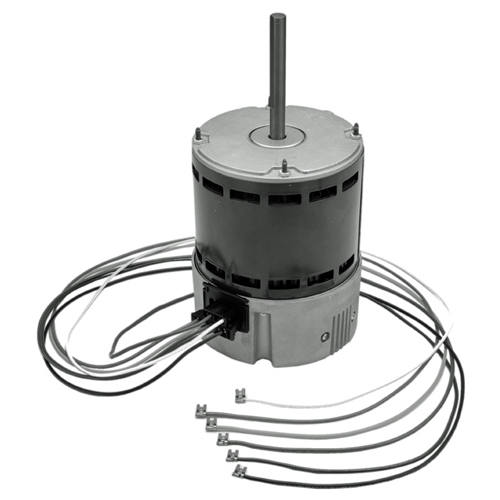

5522ET U.S. Motors High Efficiency Direct Drive Blower Motor (1/3 -1/5 HP, 1075 RPM, 115 / 208-230 Voltage)
| Applications |
| Drop-in replacement for PSC Direct Drive Commerical and Residential Air Handlers and Furnaces. |
| |
| Features |
| Electronically Controlled Brushless Permanent Magnet Motor |
|
| 40C Ambient Rated |
|
| Reversible Rotation |
|
| 48 Frame (5.6" Diameter) |
|
| No Capacitor Required |
|
| Electronically Protected Motor |
|
| Continuous Duty, Air Over |
|
| Ball Bearing |
|
| Class B Insulation |
|
| 36" Leads |
|
| 50 Hz Capable |
|
|
Specifications
|
|
Brand
|
U.S. Motors
|
|
Catalog Number
|
5522ET
|
|
Type
|
RESCUE ECOTECH High Efficiency Direct Drive Blower Motor
|
|
Series
|
HVAC Motors
|
|
Catalog Number
|
5522ET
|
|
HP
|
1/3-1/5
|
|
RPM
|
1075
|
|
Voltage
|
115 / 208-230
|
|
Recommended Cooling Speed
|
High (Blk)
|
|
Recommended Heating Speed
|
Med-Hi (YL)
|
|
Shaft Dia. x Length
|
.50 x 4.5
|
|
Shell Length
|
3.41"
|
|
Total Length
|
10.48"
|
|
Ship Wt.
|
9lbs
|
|
Code
|
DS-3ECM
|
|
Notes
|
See support documents
|
Item Number:
5522ET
Manufacturer:
U.S. Motors
Manufacturer Part No:
M055CYD0375012B
|
|
|
