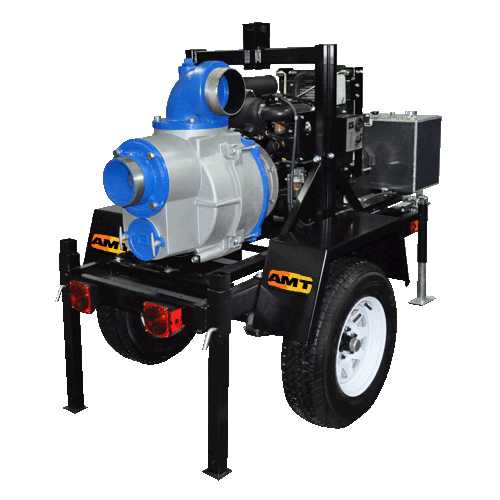

AMT Pumps 5585-H6, 6" Engine Driven Trash Pump (Honda V-Twin OHV, Trailer Mount, 23 HP, 9 HR Run Time, 20 Gal Tank, 6" Discharge, Electric Start)
| Applications |
| The AMT 6" Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from railer. Digital tachometer/hourmeter installed. |
|
| Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection. |
| Features |
| Cast Aluminum with Cast Iron and Stainless Steel Components for Long Lasting Durability |
| Silicon Carbide/Viton Mechanical Seal and Buna-N O-rings and Check Valve |
| Steel Suction Strainer and Nipple Included |
| Seal Wash Feature for Extended Seal Life |
| Built-in Check Valve for Fast Priming to 20 Feet |
| Maximum Solids Handling 3 |
| 6" NPT Port Size |
| Delivers up to 1,000 GPM |
| Digital Tachometer/ Hourmeter Installed |
| Maximum Temperature 180 F |
| 12 Volt DC Electric Start |
| Available in Trailer or Skid Mounted |
| D.O.T. Approved Trailer Refer to Your State and Local Codes for Local Codes for Registration |
| Easy Cleanout and Service Features with the Unique AMT Patented Slide Mechanism |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5585-H6
|
|
Type
|
Trash Pumps
|
|
Series
|
6" Engine Driven Trash Pumps
|
|
Driver
|
Honda V-Twin OHV
|
|
Base
|
Trailer
|
|
Engine Type
|
2 Cyl. Air Cooled
|
|
Run Time (Hours)
|
9
|
|
Tank Size (Gal/Ltr.)
|
20 / 75.7
|
|
Ship Wt. (Lbs.)
|
1000
|
|
HP Class
|
23
|
|
SUC
|
6" NPT
|
|
DIS
|
6" NPT
|
|
L
|
99.0"
|
|
W
|
48.0"
|
|
H
|
62.0"
|
|
Electric Start
|
Included
|
|
Oil Alert
|
Included
|
|
Suction Hose
|
Not Included
|
|
Discharge Hose
|
Not Included - Scroll down for related products |
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
5585-H6
Manufacturer:
AMT
Manufacturer Part No:
5585-999-H6
