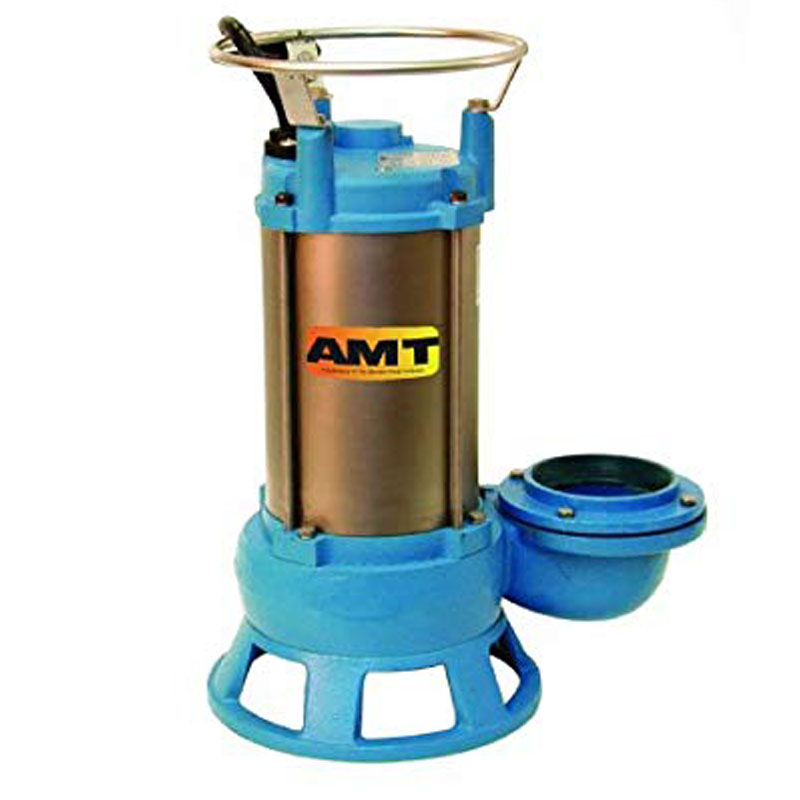

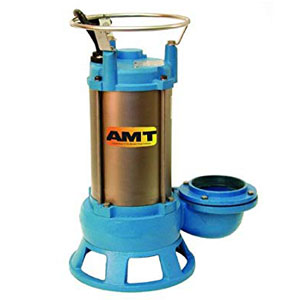

AMT Pumps 5763-95B, 50 Hz Submersible Shredder Sewage Pump (2 HP, 1 PH, 220V, 3" Discharge, 13 FLA, 50 Hz, 1.1 Max Dia. Solids, 10' Cord)
| Applications |
| AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection. Minimum liquid requirements must be above 85%. Failure to do so may cause pump damage and void warranty. |
| |
| Features |
| Cast Iron with Stainless Steel Motor Housing |
|
| Carbide Tipped Shredder Impellers |
|
| Spiral Shredder Mechanism Plate Surface Hardened for Enhanced Cutting Ability |
|
| Triplex Seal System: Double Mechanical Seals Plus Shaft Seal |
|
| Lower Seal - Silicon Carbide |
|
| 110, 220 or 400 VAC @ 50 Hz Available |
|
| 1 to 5 Horsepower |
|
| 2, 3 or 4 BST |
|
| UL/CSA Listed |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5763-95B
|
|
Type
|
50 Hz Submersible Shredder Sewage Pumps
|
|
HP
|
2
|
|
Phase
|
1
|
|
Voltage
|
220
|
|
Discharge
|
3
|
|
Full Load Amps
|
13
|
|
Hz
|
50
|
|
Max Solids (Dia)
|
1.1
|
|
Cord Length (M)
|
10
|
|
Pump Material
|
Cast Iron
|
|
Notes
|
See Support Documents
|
Item Number:
5763-95B
Manufacturer:
AMT
Manufacturer Part No:
5763-999-95B
|
|
|
