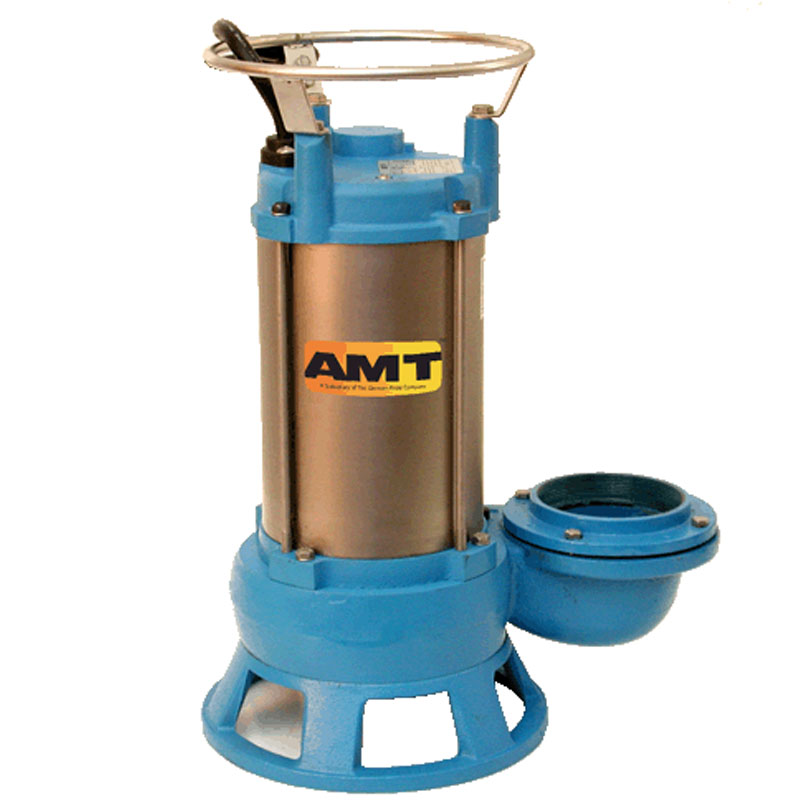

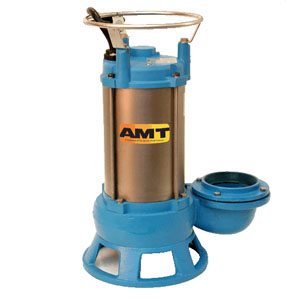

AMT Pumps 5767-95, 4" Submersible Shredder Sewage Pump (5 HP, 3 PH, 230V)
| Applications |
| AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection. |
| |
| Features |
| Cast Iron Construction |
|
| Stainless Steel Motor Housing |
|
| Double Mechanical Seal with Carbide Lower Seal |
|
| Carbide Tipped Impeller |
|
| UL/CSA Listed |
|
| Suction Screen |
|
| Carrying Handle |
|
| Maximum Temperature 104 F |
|
| QSP - Quick Ship Pumps |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5767-95
|
|
Type
|
Sewage Pumps
|
|
Series
|
Submersible Shredder Sewage Pump
|
|
Curve
|
D
|
|
DIS
|
4"NPT
|
|
HP
|
5
|
|
PH
|
3
|
|
V
|
230
|
|
Full Load Amps
|
14
|
|
Max Solids (Dia.)
|
1.2
|
|
Cord Length (Ft.)
|
32
|
|
A
|
7.5 [19.0]
|
|
B
|
10.4 [26.4]
|
|
C
|
5.5 [14.0]
|
|
D
|
6.6 [16.7]
|
|
W
|
16.2 [40.8]
|
|
H
|
19.7 [50.0]
|
|
Ship Wt. (Lbs.)
|
110
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
5767-95
Manufacturer:
AMT
Manufacturer Part No:
5767-999-95
|
|
|
