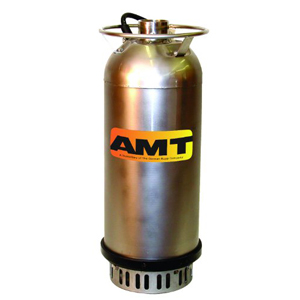

AMT Pumps 5770-95 Contractor Submersible Pump (1 HP, 1 PH, 115V)
| Applications |
| AMT Submersible Contractor pumps are intended for use in residential, commercial and industrial settings. Applications include: construction sites, waste water, storm water, farming, irrigation, excavation, mining, marine, basement and other general drainage applications involving sediment laden liquids with solids up to 3/8? in diameter. Self-cleaning impeller featuring abrasionresistant high chromium steel construction for durability. Pumps have a 3450 RPM electric motor fitted with an unfinished power cord that requires field wiring (no controls are supplied). Motors are rated continuous duty and single phase models have thermal overload protection. |
| |
| Features |
| Cast Iron with Stainless Steel Motor Housing |
|
| Hi Chromium (HCr) Steel Impeller and Cover for Wear Resistance and Durability |
|
| Superior Motor Design for Quiet, Low Noise Operation |
|
| Silicon Carbide Mechanical Seals Plus Shaft Seal |
|
| 3 and 4 Models Feature Companion Flange Connection |
|
| 115 VAC, 230 VAC or 460 VAC @ 60 Hz |
|
| Single or 3 Phase Available |
|
| 2, 3 or 4 NPT |
|
| 1 to 7.5 Horsepower |
|
| UL/CSA Listed |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5770-95
|
|
Type
|
Submersible Pump
|
|
Series
|
Contractor Submersible Pumps
|
|
HP
|
1
|
|
Phase
|
1
|
|
VAC/60HZ
|
115
|
|
Material
|
Cast Iron/SS
|
|
Port Size NPT
|
2"
|
|
Full Load Amp
|
13
|
|
Warranty
|
1 year
|
Item Number:
5770-95
Manufacturer:
AMT
Manufacturer Part No:
5770-999-95
|
|
|
