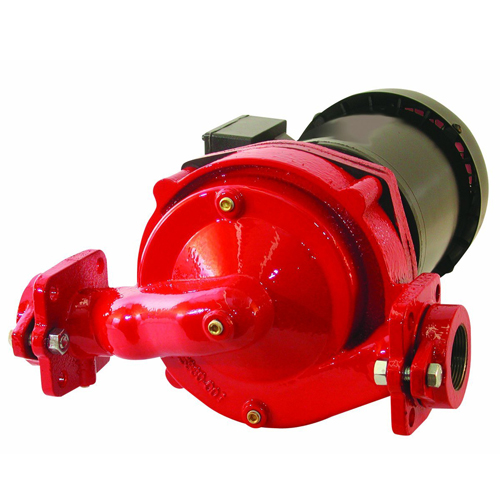

AMT Pumps 5864-95, 1-1/2" Cast Iron Inline Centrifugal Circulator Pump (1/3 HP, 115/230V, 1 Phase, Cast Iron Casing, Bronze Impeller, TEFC Enclosure)
| Applications |
| AMT Inline Circulator Pumps are designed for continuous duty industrial/commercial systems. Pumps are available in a variety of material configurations to meet your specifications. Pumps are powered by a 56C NEMA Totally Enclosed Fan Cooled (TEFC) frame electric motor with 1/2" conduit connection. |
| |
| Features |
| Includes Mounting Flange Kit for 1-1/2" NPT; Includes (2) Flanges, (2) Gaskets and Fasteners |
|
| Special Flange Designed to Accept B&G Flange or Standard 150 Lb. 4 bolt Flanges |
|
| 1/8" NPT Seal Wash/Vent Port |
|
| EPDM/EPR Mechanical Seal and Casing O-Ring Standard |
|
| Optional Viton Mechanical Seals and O-Rings Available |
|
| Stainless Steel (300 Series) Sleeve Protects Stub Shaft from Liquid |
|
| Steel Shaft with Sealed Ball Bearing Design Permits Removal of Motor Without Disconnecting Pump or Loss of Liquid |
|
| High Efficiency Closed Bronze Impeller |
|
| Available in Either Single or Three Phase TEFC 56C Motors with Standard NEMA Mounting Dimensions |
|
| Maximum Working Pressure 150 PSI |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
5864-95
|
|
Type
|
Circulator Pumps
|
|
Series
|
Inline 1-1/2" Centrifugal Circulator Pumps
|
|
HP
|
1/3
|
|
TYPE
|
TEFC
|
|
VAC/60 Hz
|
115/230
|
|
PHASE
|
1
|
|
CASING
|
Cast Iron
|
|
SHAFT SEAL
|
Stl Stl.
|
|
IMPELLER
|
Bronze
|
|
SHIP WT (Lbs.)
|
76
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
5864-95
Manufacturer:
AMT
Manufacturer Part No:
5864-999-95
|
|
|
