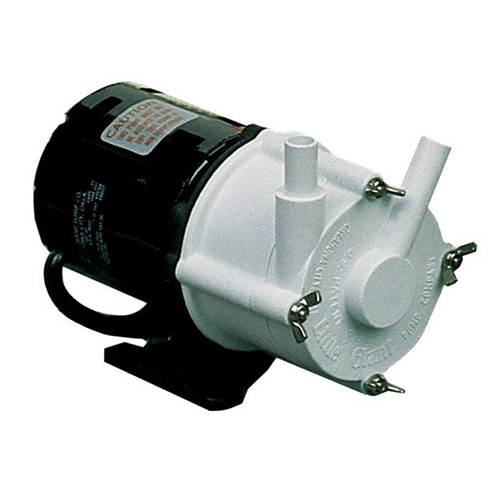

589002 Mody Pumps Magnetic Drive Pump (1/70 HP, 115 Volts,1-MD)
|
Images may be generic. Please inquire
|
Your Price:
Call for Pricing
|
| Applications |
| The Little Giant MD series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance. Impeller is glass-filled polypropylene and ceramagnet A (barium ferrite). Shaft and thrust washers are titanium for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump. |
| |
| Features |
| Thermally protected, open, fan-cooled motor |
|
| Sleeve bearings |
|
| 6' power cord with 3-prong plug (no plug on 230V) |
|
| Specific gravity to 1.1 |
|
| Fluid temperature to 150F |
|
| Ambient air temperature to 77F |
|
| Volute Glass-filled polypropylene |
|
| Housing Glass-filled polypropylene |
|
| Impeller Glass-filled polypropylene and ceramagnet A (barium ferrite) |
|
| Shaft Titanium |
|
| Thrust Washers Titanium, O-Ring Nitrile |
|
|
Specifications
|
|
Brand
|
Mody Pumps
|
|
Catalog Number
|
589002
|
|
Type
|
Magnetic Drive Pump
|
|
Model No.
|
1-MD
|
|
Item No.
|
589002
|
|
Intake Size
|
1/2" Hose
|
|
Discharge Size
|
1/2" Hose
|
|
Listing(s)
|
UR/C-CSA
|
|
HP
|
1/70
|
|
Volts
|
115
|
|
Hertz
|
60
|
|
Amps
|
0.8
|
|
Watts
|
60
|
|
Shut Feet
|
10.6
|
|
Off PSI
|
4.6
|
|
Power Cord (ft.)
|
6
|
|
Weight (lbs.)
|
4
|
Item Number:
589002
Manufacturer:
Mody Pumps
Manufacturer Part No:
589002
|
|
|
