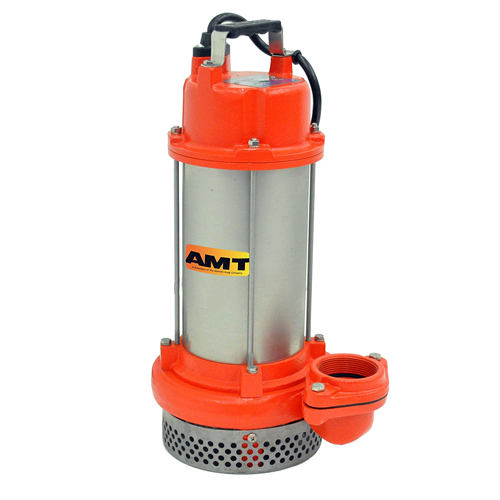

AMT Pumps 5983-95 Submersible Pump (1 HP, 3" Discharge, 1 Phase, 115V, Float not included)
| Applications |
| AMT Industrial Submersible pumps are lightweight, portable, reliable and energy efficient. The clog resistant impeller is designed for general dewatering pump use of which applications include: sump pumps, basements, construction drainage, dewatering, waste water treatments, agricultural irrigation, flooding and other applications requiring clear/drainage water removal. Motors are rated continuous duty 115VAC @ 60 Hz with standard cord/plug and have automatic thermal overload protection. |
| |
| Features |
| Cast Iron Construction With Stainless Steel Housing |
|
| Automatic Float Switch (Model 598A-95 only) |
|
| Stainless Steel External Hardware |
|
| Maximum Temp 104 F (40 C) |
|
| Double Mechanical Seal Construction |
|
| Built-In Carry Handle for Portability |
|
| Suction Screen |
|
| UL/CSA Listed |
|
| QSP: Quick Ship Pumps |
|
|
Specifications
|
|
Brand
|
AMT Pumps
|
|
Catalog Number
|
5983-95
|
|
Type
|
Submersible and Sump Pumps
|
|
Series
|
Submersible Pumps
|
|
Curve
|
C
|
|
Discharge (NPT Female Pipe Thread)
|
3"
|
|
HP
|
1 HP
|
|
Phase
|
1
|
|
Voltage @ 60 Hz
|
115
|
|
Full Load Amps
|
13
|
|
Max Solids (Dia)
|
7/32
|
|
Cord Length (Ft.)
|
20' With Plug
|
|
Automatic Float Switch
|
Not Included |
|
Width
|
11.8"
|
|
Height
|
18.8"
|
|
Warranty
|
1 Year Warranty
|
|
Notes
|
See Support Documents
|
Item Number:
5983-95
Manufacturer:
AMT
Manufacturer Part No:
5983-999-95
|
|
|
