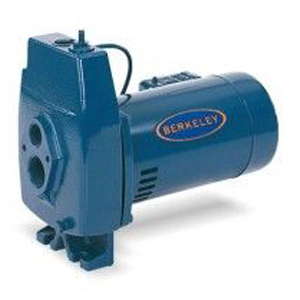

5FL-L Berkeley Convertible Jet Pump (1/2 HP, 115 / 230 Voltage, 1-1/4" Suction, 1" Discharge, Base Mounted, Cast Iron)
| Applications |
| FL Series Pumps feature a proven self-priming converible design. The same convertible jet can be attached to pump for use on shallow well installation, or be utilized in 4 or larger wells for use as a double pipe deep well jet. FL Series Pumps provide high capacities up to 11 GPM depths to 90 feet. They are rated for 30-50 PSI operation. Applications include water systems and sprinkling for homes, farms and cottages. |
| |
| Features |
| Quality Cast Iron Construction: Pump Body is Rugged One-Piece Unit, Specially Treated to Resist Corrosion. Drain Port Provided for Easy Winterizing |
|
| Precision Molded Lexan Impeller for Perfect Balance..... Ultra Smooth for Highest Performance and Efficiency |
|
| Precision Molded Diffuser Primes Faster, Handles More Air. Multi-Port, Precision-Molded Reinforced Polypropylene |
|
| High Quality Pressure Switch With Adjustable Cut-In Setting. Fixed 20 PSI Differential |
|
| Mechanical Shaft Seal With Precision Lapped Highly Polished Carbon-Ceramic Surfaces and Stainless Steel Construction |
|
| Superior Insulations Materials on Motor Windings Protect Against Excessive Moisture and Contaminants .... Assures Prolonged Motor Life |
|
| Balanced Rotor is Die Cast Under High Pressures for Uniform Performance and Greater Efficiency |
|
| Shielded, Permanently Lubricated Ball Bearings, Extensively Tested to Ensure Extended Life and Smooth, Quiet Operation |
|
| 416 Stainless Steel Pump and Motor Shaft for Maximum Corrosion Resistance. One Piece Threaded Shaft for Positive Impeller Drive and Alignment |
|
| Dustproof Motor Canopy Protects All Electrical Components From Dirt, Dust and Insects. Ventilating Air Cannot Contaminate Vital Switching Components ... The Most Common Cause of Motor Failure |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
5FL-L
|
|
Type
|
Cast Iron Convertible Jet Pumps
|
|
Series
|
FL and FLJ
|
|
HP
|
1/2
|
|
Voltage
|
115 / 230
|
|
Suction
|
1-1/4"
|
|
Drive
|
1"
|
|
Discharge
|
1"
|
|
Description
|
Base Mounted
|
|
Body
|
Cast Iron
|
|
Impeller
|
Lexan
|
|
Diffuser
|
Reinforced polypropylene
|
|
Shaft
|
One-piece threaded 416 stainless steel
|
|
Pressure Switch Pre-Set
|
30-50 PSI
|
|
Suction Ports
|
Drive-over-Suction
|
Item Number:
5FL-L
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
5FL-L
|
|
|
