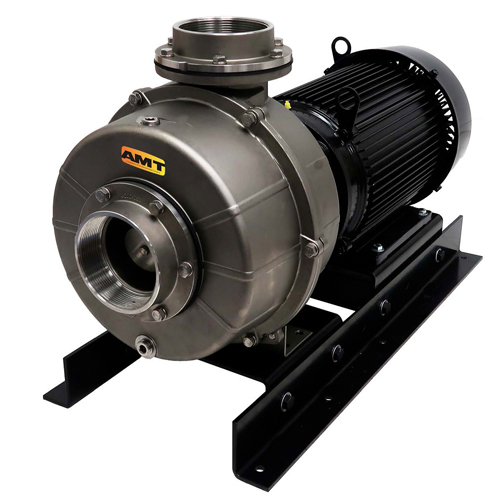

6211-98 AMT Stainless Steel Self-Priming Pumps (10 HP, TEFC, 230 Voltage, 1 Phase, 4" Suction, 4" Discharge)
| Applications |
| The AMT Stainless Steel Self-Priming Pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, chemical transfer, circulation, and drainage applications. These units have a stainless steel casing, bracket, seal plate, removable volute, and a clog resistant semi-open impeller. Pumps are designed to handle liquids with solids contents up to 1/2 spherical solids for our 3 models and 3/4 spherical solids for our for 4 models. Builtin check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. |
| |
| Features |
| Viton Mechanical Seal, O-Rings and Gaskets. Optional Silicon Carbide Seal Available. |
|
| Built-In Viton Flapper/Check Valve Permits Self-Priming up to 20. |
|
| Stainless Steel Self-Cleaning Semi- Open Impeller. |
|
| Fill & Drain Plugs for Easy Servicing |
|
| Semi-Open Impeller with Spherical Solids Handling. |
|
| * See Support Documents for pump GPM, TDH and PSI chart. |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
6211-98
|
|
Type
|
4" Self-Priming Stainless Steel Pump
|
|
Series
|
Self-Priming Pumps
|
|
HP
|
10
|
|
Phase
|
1
|
|
Enclosure
|
TEFC
|
|
Frame
|
215JM
|
|
Voltage
|
230
|
|
Hz
|
60
|
|
Suction
|
4"
|
|
Discharge
|
4"
|
|
Optional Base (not included)
|
A200-90
|
|
Length
|
37 [94]
|
|
Width
|
16.4 [41.7]
|
|
Height
|
16.1 [40.9]
|
|
Ship Weight (lbs.)
|
230
|
|
Solid Handling Capability
|
up to 3/4
|
|
Construction
|
Cast Stainless Steel
|
|
Mechanical Seal Material
|
Viton w/Carbon/Carbide Faces
|
|
Max Temp
|
200 F
|
|
Notes
|
See support documents
|
Item Number:
6211-98
Manufacturer:
AMT
Manufacturer Part No:
6211-98
MSRP: $515.00
Your Price: $334.42
You Save: $180.58 (35 %)
A200-90 AMT Mounting Base (designed for 145/182/184/215JM Frames)
| | |
|
|
|
