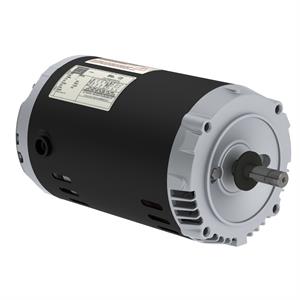

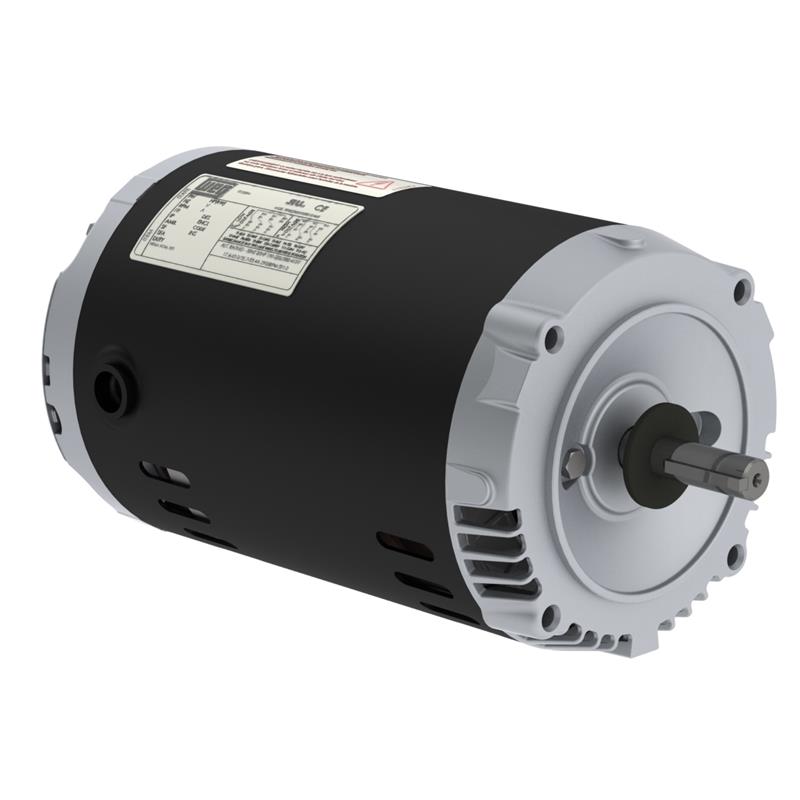

.7536OS3EJPR56J-S WEG Jet Pump Motor (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3455 RPM)
| Applications |
|
| |
| Features |
| Jet Pump Motors, 3-Phase, Rolled Steel, Standard Efficiency, ODP |
|
Tech Specs
|
|
Brand
|
WEG Motors
|
|
Model Number
|
.7536OS3EJPR56J
|
|
HP
|
0.75 HP
|
|
RPM
|
3455
|
|
FRAME
|
B56
|
|
VOLTAGE
|
208-230/460 V
|
|
PHASE
|
THREE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
ODP
|
|
APPROXIMATE WEIGHT (lb)
|
26
|
|
FEET
|
NO
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
FC-149
|
|
RATED CURRENT
|
2.55-2.39/1.20 A
|
|
LOCKED ROTOR CURRENT IL IN
|
5.7
|
|
LOCKED ROTOR CURRENT
|
13.6/6.82 A
|
|
LOCKED ROTOR TORQUE
|
2.4
|
|
BREAKDOWN TORQUE
|
2.6
|
|
EFFICIENCY 50
|
64
|
|
EFFICIENCY 75
|
70
|
|
EFFICIENCY 100
|
72
|
|
POWER FACTOR 50
|
0.61
|
|
POWER FACTOR 75
|
0.72
|
|
POWER FACTOR 100
|
0.81
|
|
SERVICE FACTOR
|
1.50 (1.00 at 208V)
|
|
INERTIA KGM2
|
0.00093 kgm
|
|
INERTIA SQ FT
|
0.02207 sq.ft.
|
|
LOCKED ROTOR TIME
|
15 s
|
|
NOISE LEVEL
|
-
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP21
|
|
NO-LOAD CURRENT
|
1.53/0.765 A
|
|
INSULATION CLASS
|
B
|
|
FULL LOAD TORQUE NM
|
1.52 Nm
|
|
FULL LOAD TORQUE FT
|
1.12 .ft
|
|
SLIP
|
0.0403
|
|
DESIGN
|
A
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6203 2RS
|
|
BEARINGS N D E
|
6202 2RS
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
Item Number:
.7536OS3EJPR56J-S
Manufacturer:
WEG
Manufacturer Part No:
.7536OS3EJPR56J-S
|
|
|
