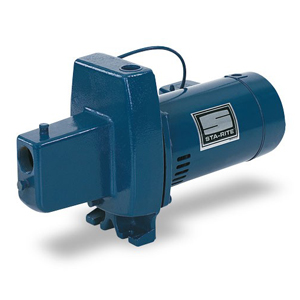

7FN-L Berkeley Self-priming shallow well jet pump (3/4 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, cast iron Body)
| Applications |
| The FN Series provides strong performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water. Applications include: Water systems and sprinkling for homes, farms and cottages. |
| |
| Features |
| Quality Construction: Close-grained cast iron body and base, specially treated for corrosion resistance. Drain port provided for easy winterizing. |
|
| Built-in Jet: High-strength polycarbonate nozzle and venturi for maximum resistance to corrosion and abrasion. Cleanout plug provided for ease of service. |
|
| Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency. |
|
| Precision-Molded Diffuser: Pump primes faster, handles more air, with multiport, precision-molded, reinforced polypropylene diffuser. |
|
| Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication. |
|
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassure prolonged motor life. |
|
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced. |
|
| Heavy-Duty Ball Bearings: Sealed, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation. |
|
| Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment. |
|
| Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy; ventilating air cannot contaminate vital switching components. |
|
| Pressure Switch: Adjustable cut-in and fixed differential (20 PSI). |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
7FN-L
|
|
Type
|
self-priming shallow well jet pumps
|
|
Series
|
FN
|
|
HP
|
3/4
|
|
Switch Setting
|
30-50
|
|
Suction
|
1-1/4"
|
|
Discharge
|
1"
|
|
Voltage
|
115/230
|
|
Max. Inlet Pressure
|
50 PSI
|
|
Body
|
Close-grained cast iron
|
|
Shaft
|
One-piece threaded stainless steel
|
|
Diffuser
|
Reinforced polypropylene
|
|
Impeller
|
Noryl
|
|
Venturi
|
Polycarbonate
|
Item Number:
7FN-L
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
7FN-L
|
|
|
