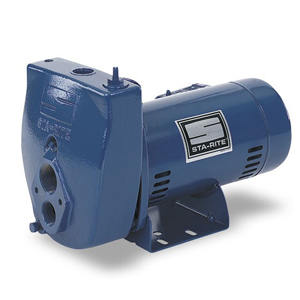

7SL Berkeley Convertible Jet Pump (3/4 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, 50 PSI Max)
| Applications |
| The ProJet SL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 to 1-1/2 HP models. The ProJet SL convertible jets utilize the built-in regulators, offering easier priming and better range of performance from a complete line of shallow well, 4" double pipe, 2" and 3" single pipe jet packages. APPLICATIONS: Water systems and sprinkling for homes, farms and cottages. |
| |
| Features |
| Quality Construction: Close-grained cast iron pump body is rugged one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing. |
|
| Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency. |
|
| Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. |
|
| Pressure Switch: High-quality, cut-in pressure setting is adjustable. Fixed 20 PSI differential. |
|
| Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection. |
|
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassures prolonged motor life. |
|
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiencydynamically balanced. |
|
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation. |
|
| Pump and Motor Shaft: 416 stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment. |
|
| Dustproof Cover: Dustproof canopy protects all electrical components from dirt, dust and insects; ventilating air cannot contaminate vital switching components eliminates the most common cause of motor failure. |
|
| * SLJ Models include ejector package. |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
7SL
|
|
Type
|
Cast iron, self-priming convertible jet pump
|
|
Series
|
SL/SLJ
|
|
HP
|
3/4
|
|
Suction
|
1-1/4"
|
|
Drive
|
1"
|
|
Discharge
|
1"
|
|
Voltage
|
115/230
|
|
Body and Seal Plate
|
Close-grained cast iron
|
|
Impeller
|
High-strength Noryl
|
|
Diffuser
|
Reinforced polypropylene with brass wear ring
|
|
Shaft
|
One-piece threaded 416 stainless steel
|
|
Base
|
Steel, 12 gauge
|
|
Max. Inlet Pressure
|
50 PSI
|
|
Pressure Switch Pre-Set
|
30-50 PSI
|
|
Suction Ports
|
Suction-over-Drive
|
Item Number:
7SL
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
7SL
|
|
|
