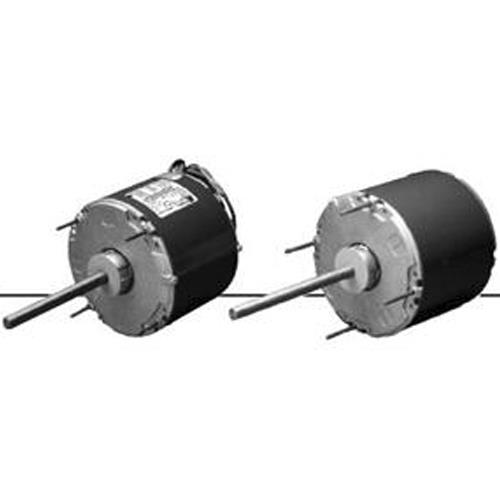

8068 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1 HP, 200 Volts, 1080 RPM)
|
Applications |
|
Designed to meet manufacturer's requirements for condenser cooling fans. |
|
|
|
Features |
|
High Efficiency Economizer Rated (except as noted) | Green Ground Lead
|
|
60 Hz | Reversible Rotation
|
|
Capacitor Mounting Holes in Frame Band | Class B Insulation
|
|
Continuous Duty, Air Over | 30" Leads
|
|
Water Slinger | Double Flats on Shaft
|
|
Designed for use with 370V Capacitors | Enclosed Endshield at Shaft End
|
|
Automatic Reset Thermal Overload Protector | Sleeve Bearings have All Angle Thrust System
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 8068 | | HP | 1 | | RPM | 1080 | | Volts | 200 | | Bearings | Ball | | Amps | 5.9 | | Cap. MFD | 30 | | Shaft N | 4.5 | | Apx. Wt. (lb) | 25 | | Shell XI | 6.1 | | Total C | 11.1 | | Diameter | 5.6" | | Enclosure | Open Dripproof, Air Over | | Mount | Stud - Shaft Up or Horizontal | | Notes | Without Capacitor | | Type | Permanent Split Capacitor Condenser Fan Motor | | OEM Replacement | Lennox | | | | | | |
Item Number:
8068
Manufacturer:
U.S. Motors
Manufacturer Part No:
8068
|
|
|
