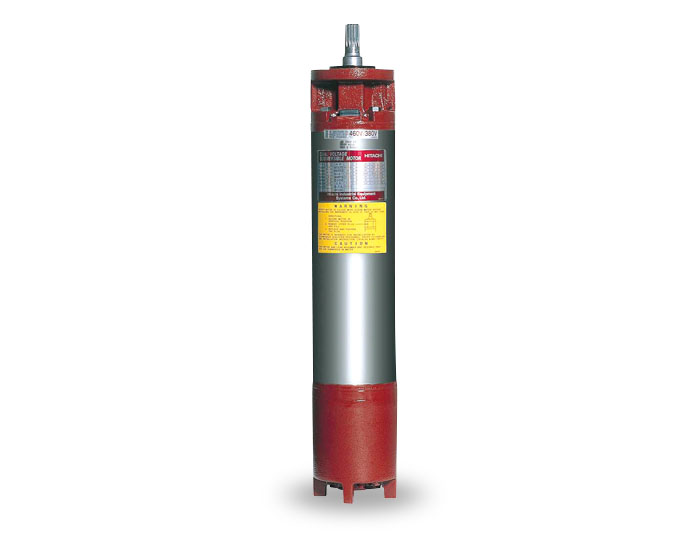

86HIT2-50-4 STA-RITE Hitachi 8" Motor (50 HP, 460 Volts, 3 Phase, 3600 RPM)
|
Applications |
|
Hitachi Motors are designed for long service life and years of dependable operation. Innovative design and robust characteristics make this the perfect motor for your pumping applications. |
|
|
|
Features |
|
Corrosion-Resistant Design For long life |
|
|
High-Capacity Kingsbury-type Bearings performance |
|
|
Low-Profile NEMA Design For ease of installation |
|
|
VFD-Compatible |
|
|
Replaceable Plug-in Motor Lead For ease of maintenance |
|
|
Higher Efficiencies and Lower Current Consumption Reduced energy costs |
|
| Specifications | | Brand | STA-RITE | | Model Number | 86HIT2-50-4 | | Type | 8" Hitachi Submersible Motor | | Diameter | 8" | | HP | 50 | | Kw | 37 | | Volts | 460 | | Phase | 3 | | Hz | 60 | | Poles | 2 | | RPM | 3600 | | Lead Length | 200" | | ServiceFactor | 1.15 | | Rated Input Amps | 65 | | Service Factor Input Amps | 73 | | Winding Resistance(ohms) | 0.331 | | ThrustCapacity | 5000 | | Length(L) | 45.28" | | Diameter(D) | 7.52" | | Motor Sleeve | Stainless Steel | | Weight | 353 | | Notes | See Support Document |
Item Number:
86HIT2-50-4
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
86HIT2-50-4
|
|
|
