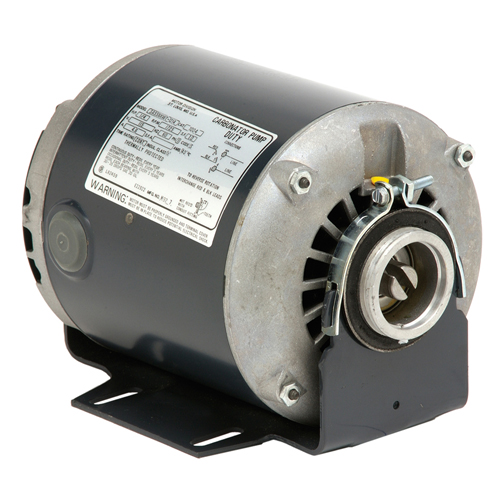

872 US Motor Special Application Carbonator Pump Motor (3/4HP, ODP, 1725 RPM)

Model_Number: S055PNA7672012J
Cat # 872
PRODUCT NAME: .75 HP - ODP - 1725
PHASETYPE: 1_SPLIT PHASE
MOTOR ENCLOSURE: ODP
HORSEPOWER: .75
KILOWATTS: 0.6
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
RPM 2: 1425
HERTZ: 50
HERTZ 2: 60
VOLTS PRIMARY: 115/230 V
VOLTS : 115
VOLTS 2: 230
FRME : 48
SHAFT CODE: Z
STATOR DIAMETER: 5.5
STACK: 3
MOUNTING: RESILIENT
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1
SHIPPING WEIGHT: 25
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 73.58
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 38.69
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: A
LOCKED ROTOR AMPS: 45.73
FULL LOAD AMPS PRIMARY: 10.0/4.9//9.8/4.9
SERVICE FACTOR AMPS PRIMARY: 10.0/4.9//9.8/4.9
