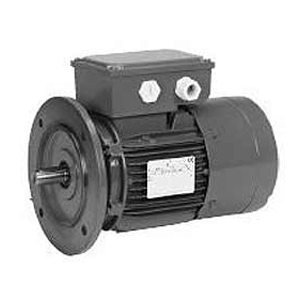

BR13S2AC3 U.S. Motors FCR Series Brake Motors (1/3 HP, 56C Frame, 4.4 Brake Torque , C-Face , 1800 RPM)
| Applications | | For manual release, brake torque adjustments, external air gap adjustments and where high cycling is required.
Bulk material handling equipment, conveyors, cranes and hoists. | | | | Features | | Class F Insulation; Pressure Die Cast Aluminum Alloy Frame; Non-Regreasable, Oversized Ball Bearings (56-250 Frame); F0 Assembly Position (Conduit Box On Top); High Braking Torque (Heavy Duty); 180 Volt DC Brake Coil (Rectifier Included); 1.15 SF @ 60 Hz, 40C Ambient, Continuous Duty; Simple Manual Brake Release Option Available; Air Gap Can Be Adjusted Easily; Suitable For Use On The Following: 60 Hz 208-203/460 Volt -9 Leads, 50 Hz 380 Volt (1.0 SF) - 9 Leads, 60 Hz 575/600 Volt - 3 Leads (Only On Request) | | Tech Specs. | | Brand | U.S. Motors/Emerson FCR Series Brakemotor | | Model Number | BR13S2AC3 | | HP | 1/3 | | RPM | 1800 | | Volts | 208-230/460 | | SF | 1.15 | | Frame | 56C | | Full Load Amps | 1.5-1.3/0.65 | | "C" Dim. | 12.7 | | Apx. Wt. (lb) | 20 | | Brake Torque | 4.4 | | Phase | Three | | Motor Mount | Footed | | Enclosure | TEFC | | Type | FCR Series Brakemotor | | Full Load Efficiency | - | | | C-Face | | | | | | | | | |
Item Number:
BR13S2AC3
Manufacturer:
U.S. Motors
Manufacturer Part No:
4BRA13TC
|
|
|
