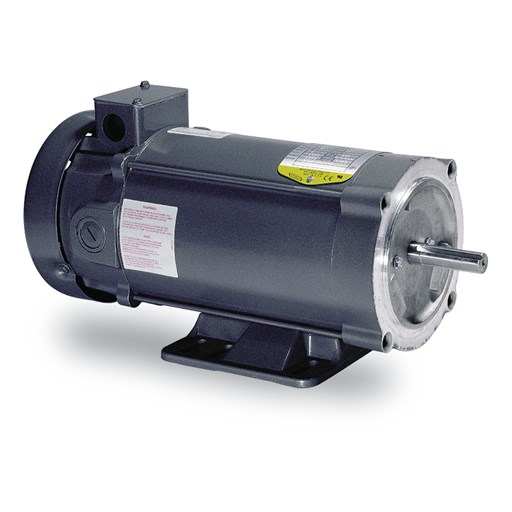

CD6202 Baldor Shunt Wound SCR Drive Motor (2 HP, 180 VDC, TEFC , 1750 RPM)
| Applications | | Conveyors, printing, textile equipment, machine tools
(adjustable speeds with constant torque). | | | | Features | | TEFC enclosure, shunt wound, Class F insulation. Designed for
use with NEMA TYPE K SCR control, 20:1 constant torque speed range
(except where noted). NEMA C-face and removable base (1) (except on
explosion proof models). NEMA 182 and larger have a thermostat (normally
closed contracts) on the field winding. | | Tech Specs | | Brand | Baldor | | Model Number | CD6202 | | HP | 2 | | Base Speed | 1750 | | Voltage DC Arm. | 180 | | Voltage DC Field | 200/100 | | Full Load Amps. Arm. | 9.5 | | Full Load Amps. Field | .4/.8 | | NEMA Frame | 182C | | Apx. Wt. (lb) | 96 | | Enclosure | TEFC | | Type | Shunt Wound SCR Drive Motor | | | | | | | | | | | | | | | | | | | | | | | | |
Item Number:
CD6202
Manufacturer:
Baldor
Manufacturer Part No:
CD6202
|
|
|
