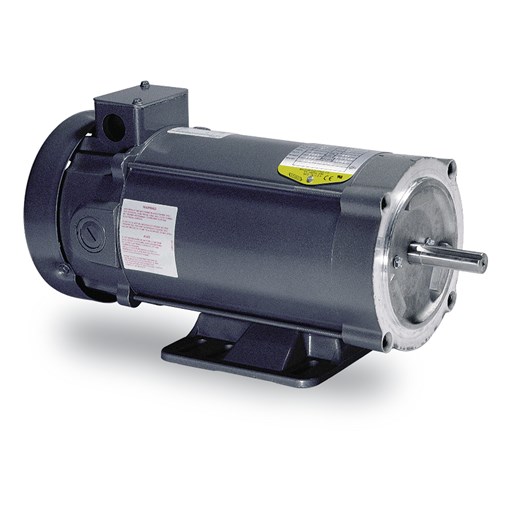

CDP3443 Baldor SCR Drive Permanent Magnet DC Motor (3/4 HP, 90 VDC, 2500 Base Speed)
| Applications | | Conveyors, mixers, packaging machinery. | | | | Features | | NEMA C-face with removable base. Tach adaptable. Class
F insulation, double sealed ball bearings. 20:1 constant torque speed
range. UL and CSA recognized. 1/4 - 1/2 Hp motors are TENV, all others
are TEFC. No dual mounting base holes on 1/4 - 1/2 Hp. | | Tech Specs | | Brand | Baldor | | Model Number | CDP3443 | | HP | 3/4 | | Base Speed | 2500 | | Voltage DC Arm. | 90 | | Full Load Amps. | 7.5 | | NEMA Frame | 56C | | Enclosure | TEFC | | Motor Mount | Removable Base | | Apx. Wt. (lb) | 36 | | Type | SCR Permanent Magnet DC Motor | | Reliance M/N | - | | | | | | | | | | | | | | | | | | | | | | | | |
Item Number:
CDP3443
Manufacturer:
Baldor
Manufacturer Part No:
CDP3443
|
|
|
