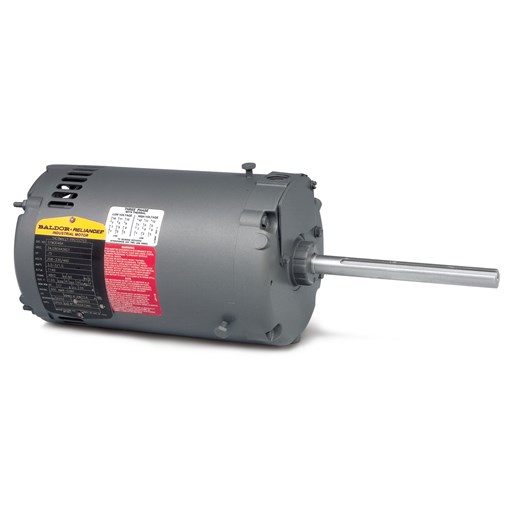

CFM3036A Baldor Three Phase Condenser Fan (HVAC) Motor, ODP, 48YZ Frame, "Belly Band" Round Body (1/2 HP, 1200 RPM)
| Applications | | Designed specifically for use on commercial refrigeration condenser
units and air conditioning units. | | | | Features | | Corrosion resistant finish, ball bearings, dynamically balanced for quiet
operation. Automatic reset thermal. Shaft 6 long - keyway and flat are 90 apart.
Reconnectable leads in pulley endplate. | | Tech Specs. | | Brand | Baldor HVAC Motor | | Model Number | CFM3036A | | HP | 1/2 | | RPM | 1200 | | Volts | 208-230/460 | | "C" Dim | 14.29 | | NEMA Frame | 48YZ | | Full Load Amps | 1.2 | | Full Load Efficiency | 72 | | Apx. Wt. (lb) | 25 | | EISA Status | C | | Phase | Three Phase | | Motor Mount | "Belly Band" Round Body | | Enclosure | ODP | | Type | Condenser Fan | | | | | | | | | | | | | | | |
Item Number:
CFM3036A
Manufacturer:
Baldor
Manufacturer Part No:
CFM3036A
