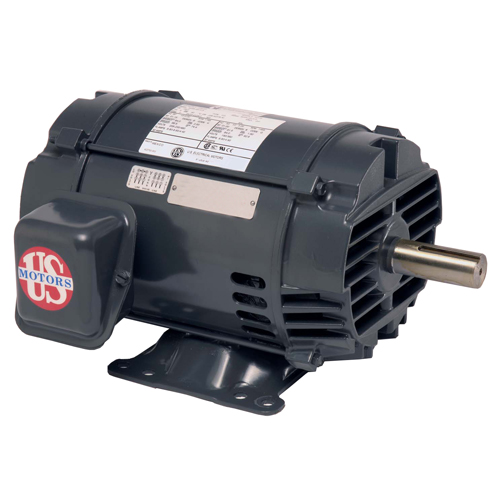

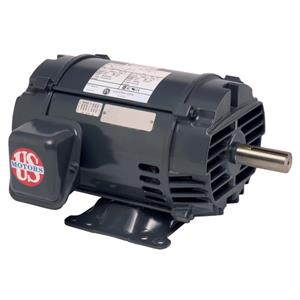

D100P3C U.S. Motors General Purpose Motor (100 HP, 444T Frame, Three Phase, 1200 RPM)
| Applications | | For use in pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal. | | | | Features | | Class F Insulation, Class B Rise At Service Factor, Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End Shields 280-440, CE Mark on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz Sine Wave Power, 1.15 Service Factor, Regreasable Bearings 180 Frame & Up, Double Shielded Bearings 140-400, Open On 440, Bearing Caps On 400 & 440 Frames, F1 Assembly Position except where noted, Lifting Provisions 210 Frame & Up | | Tech Specs. | | Brand | U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor | | Model Number | D100P3C | | HP | 100 | | RPM | 1200 | | Volts | 460 | | "C" Dim | 38 | | Frame | 444T | | Full Load Amps | 121 | | Full Load Efficiency | 95.4 | | Apx. Wt. (lb) | 1100 | | SF | 1.15 | | Phase | Three | | Motor Mount | Foot Mounted | | Enclosure | ODP | | Type | General Purpose Industrial Motor | | | | | | | | | | | | | | | |
Item Number:
D100P3C
Manufacturer:
U.S. Motors
Manufacturer Part No:
J524
|
|
|
